What is a Biaxial Geogrid?
A biaxial geogrid is a mesh-like structure formed by the directional stretching of a polymer material (usually polypropylene PP or high-density polyethylene HDPE). It possesses high tensile strength in both the longitudinal (machine direction) and transverse (lateral) axes, hence the name "biaxial" or "two-way" geogrid.
Unlike uniaxial geogrids, which provide high strength in only one direction, biaxial geogrids can evenly distribute and transfer loads in two perpendicular directions. This makes them particularly suitable for soil reinforcement applications requiring bidirectional stress, such as:
Road base course reinforcement
Parking lot and freight yard surfaces
Railway subgrade stabilization
Shallow foundations on soft soil
Soil reinforcement behind slopes and retaining walls
Structural Features
A typical Biaxial Geogrid has the following structural features:

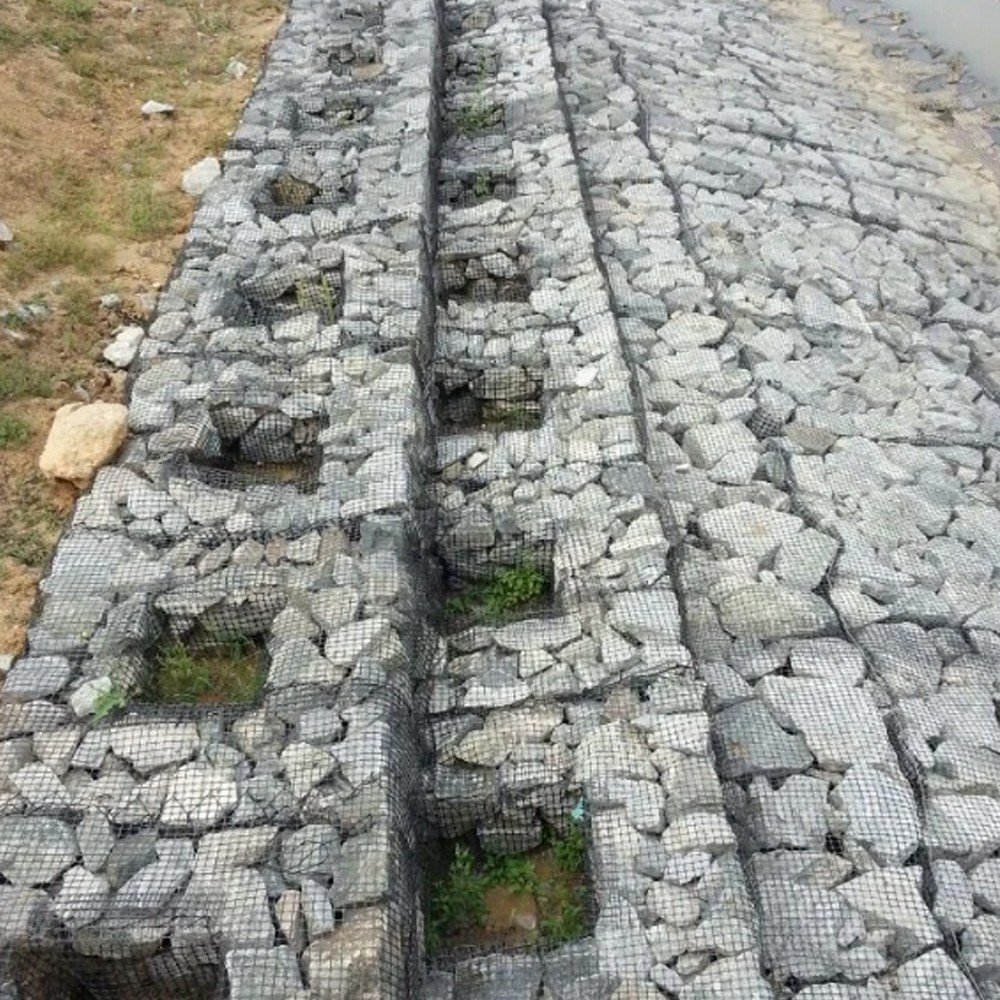

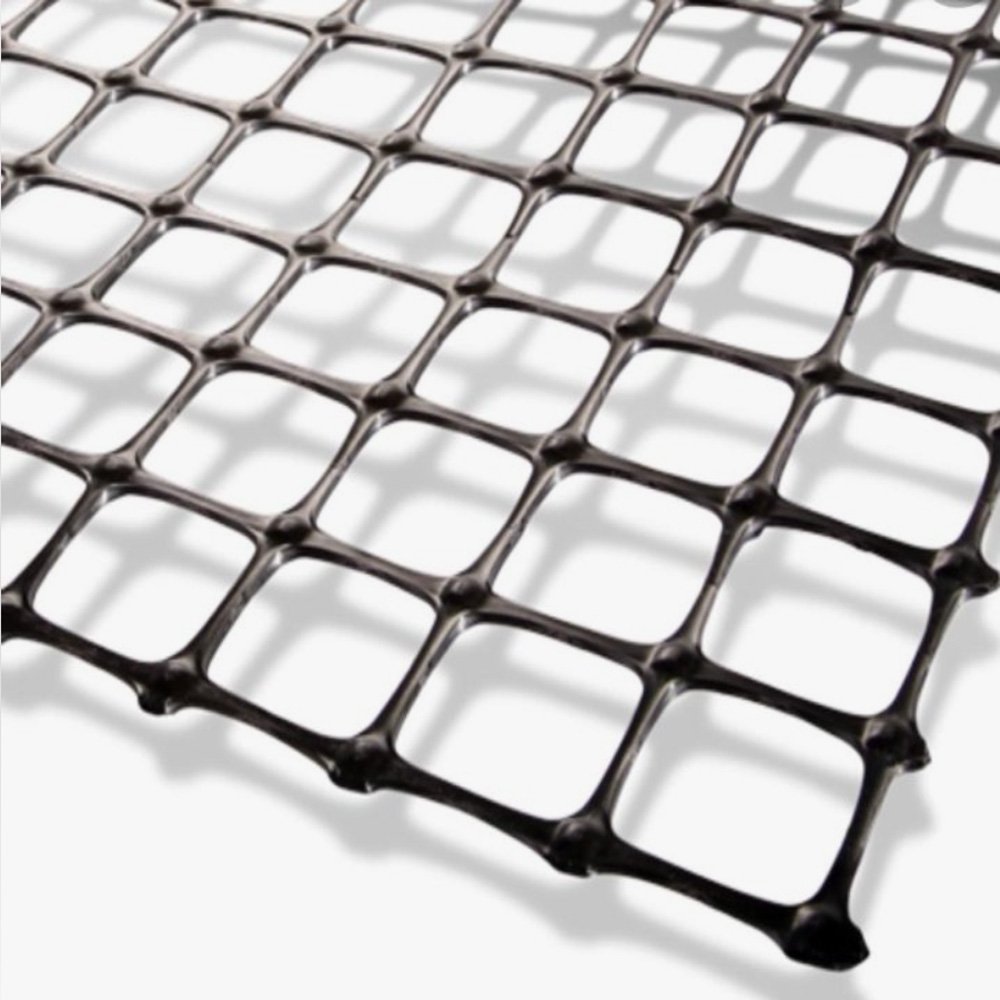

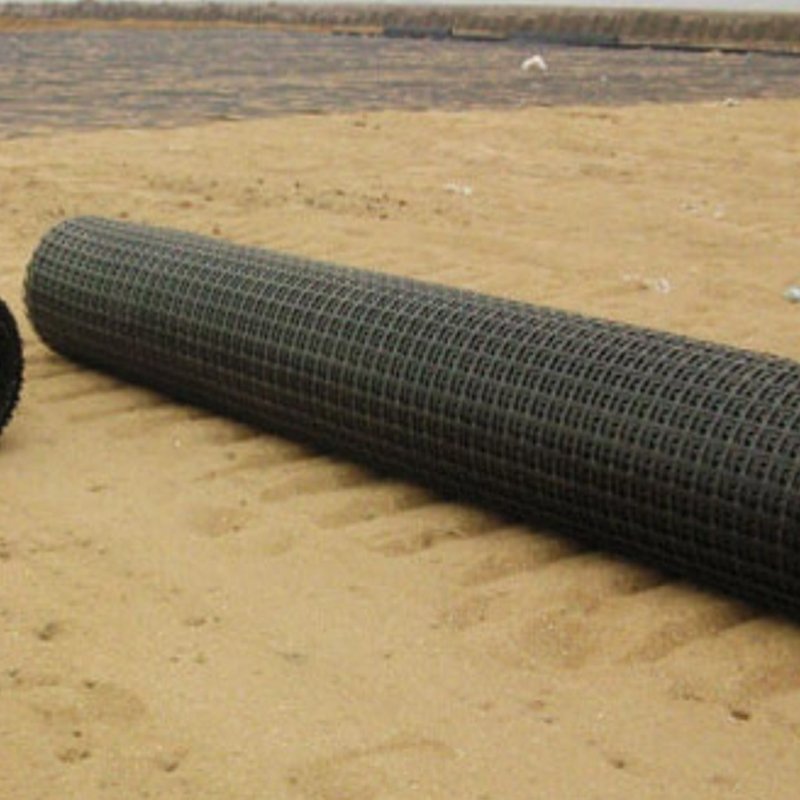

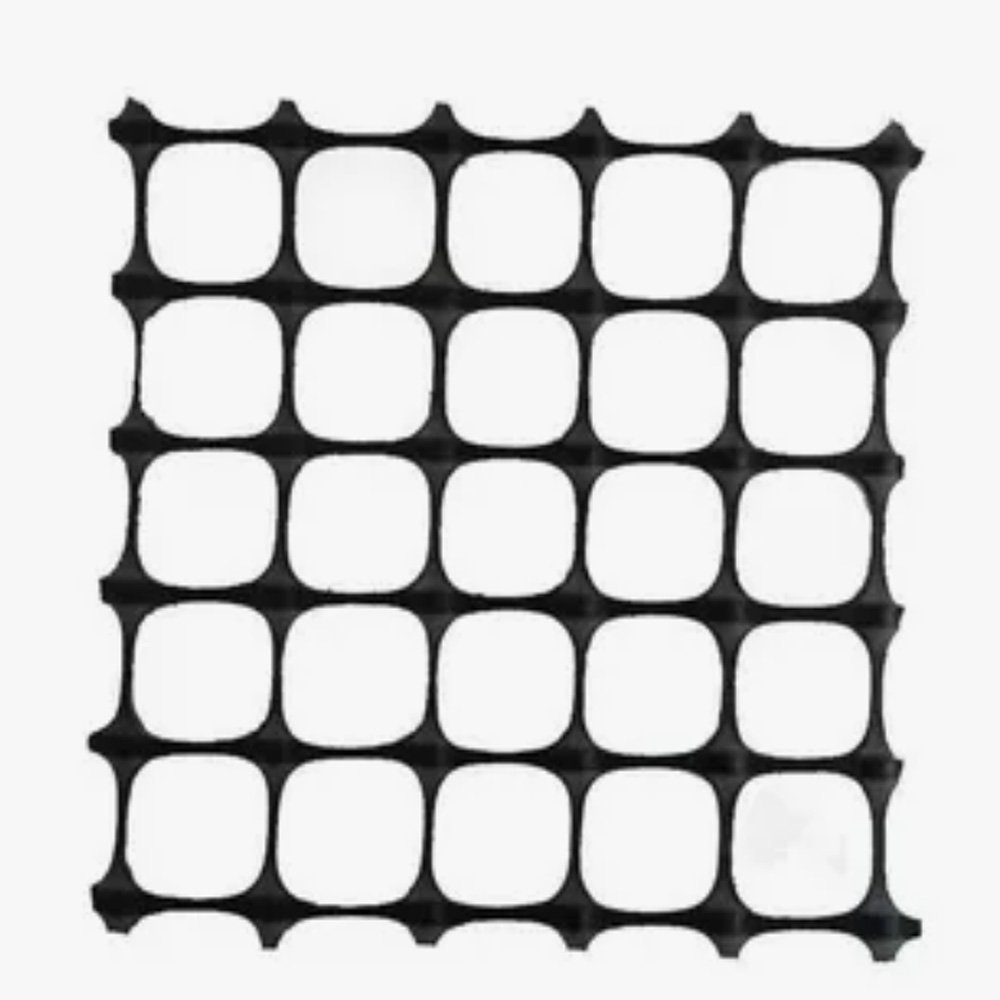

Square or rectangular mesh openings: The mesh size is typically 25-50 mm, allowing soil particles to pass through and form an interlocking effect.
Regulated nodes: After stretching, the polymer molecules at the nodes are highly oriented, significantly increasing strength.
Uniform rib cross-section: Ribs in both longitudinal and transverse directions have similar thickness and width, ensuring consistent performance in both directions.
How Biaxial Geogrid Works
Interaction Mechanisms
The collaborative working relationship between the biaxial geogrid and the soil is primarily achieved through the following three mechanisms:
Passive Resistance
When the soil is subjected to external loads (such as vehicle loads or the weight of the fill), soil particles undergo lateral and longitudinal displacement. Soil particles embedded in the mesh of the biaxial geogrid generate passive earth pressure with the geogrid ribs, thus subjecting the geogrid to tensile stress and restricting lateral soil displacement. This mechanism is similar to the "anchoring effect."
Friction
Surface friction exists between the rib surfaces of the biaxial geogrid and the surrounding soil particles. When the soil tends to slide, this friction is converted into tensile stress in the geogrid, providing resistance to sliding. The coefficient of friction depends on:
Geogrid material (PP or HDPE)
Particle size, shape, and gradation of soil particles
Normal stress level
Interlocking

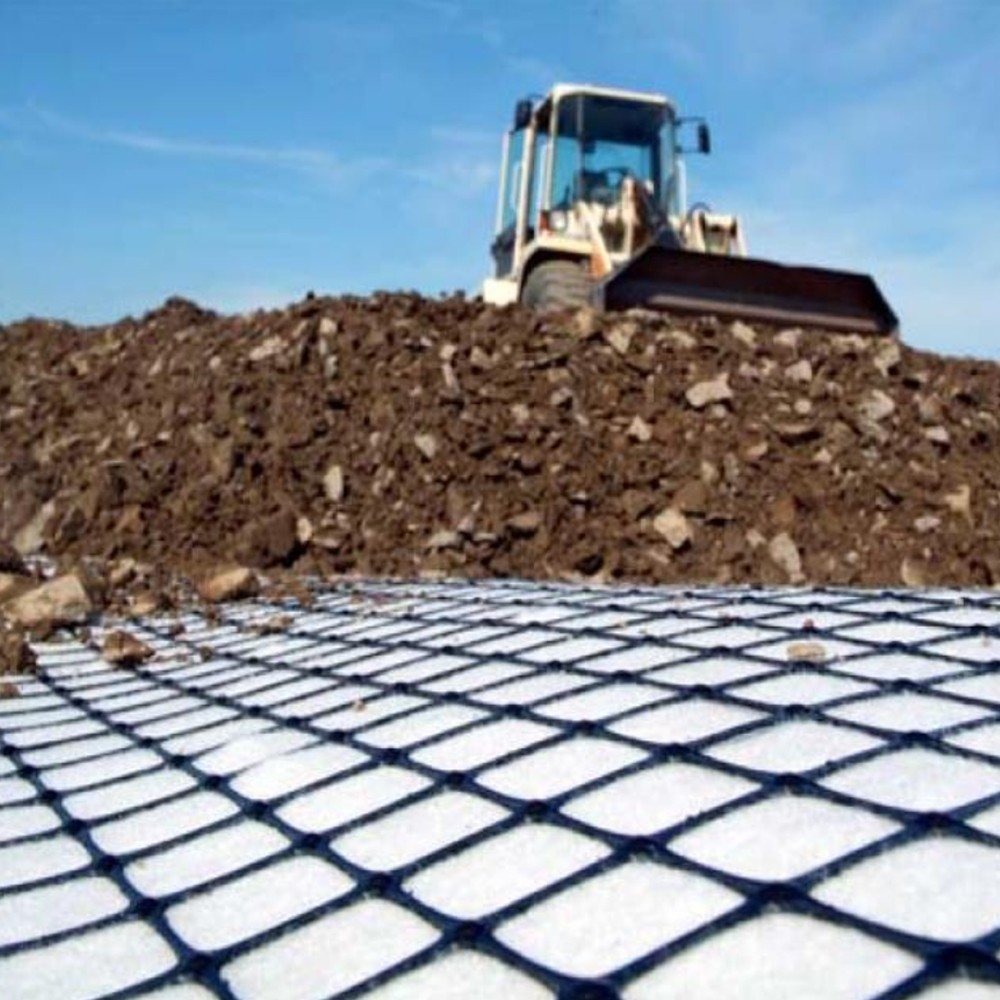

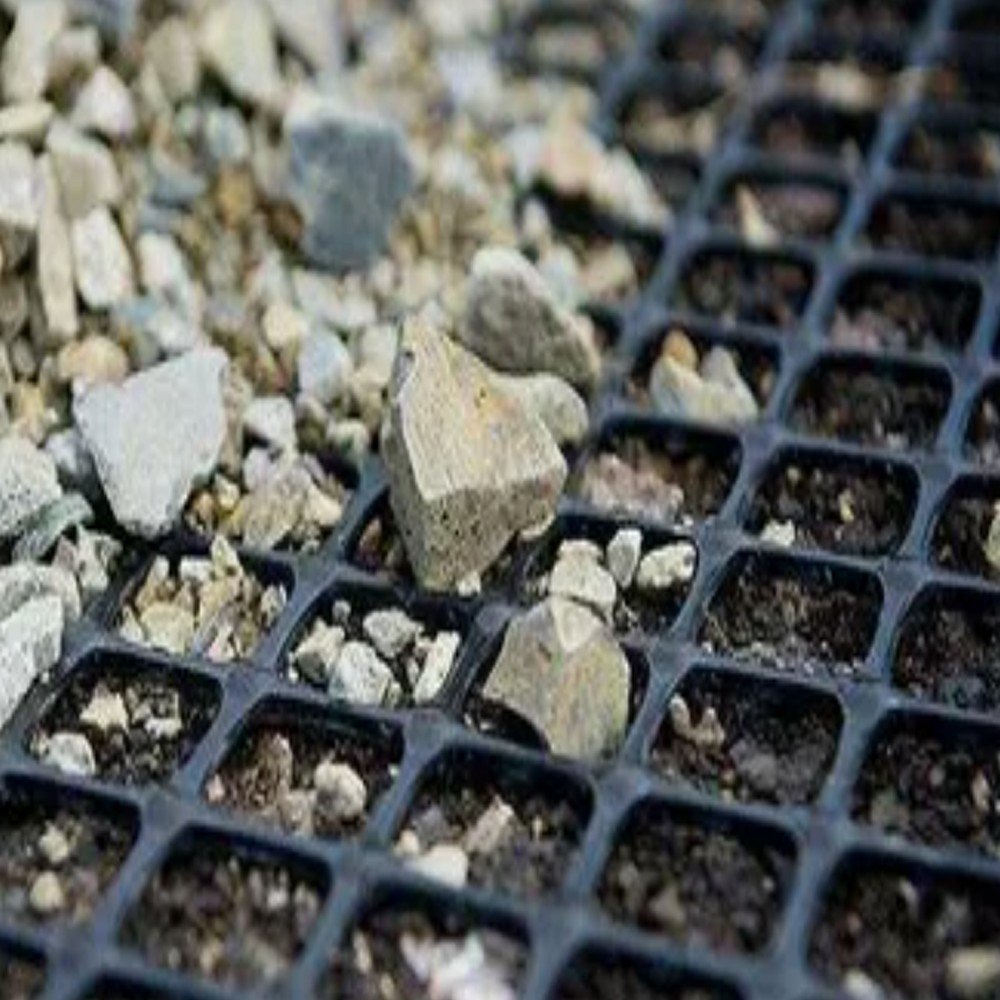

This is the core mechanism that distinguishes biaxial geogrid from geotextiles. Soil particles are "interlocked" with the geogrid through the mesh openings, forming a three-dimensional mechanical interlocking system. Particles cannot easily detach from the mesh, thus significantly improving the integrity and stiffness of the soil.
To use an intuitive analogy: the role of biaxial geogrid is similar to the reinforcing steel in concrete—it does not directly bear compressive loads, but rather diffuses localized loads to a wider area by constraining the lateral deformation of the soil.
Stress Distribution and Diffusion: Without reinforcement, loads acting on a soft soil base layer concentrate in a small area, easily leading to settlement and shear failure. After laying biaxial geogrid:
The load is transferred to the geogrid layer through the pavement structure.
The geogrid is under tension in both directions, transforming the concentrated load into a tensile stress field covering a larger area.
The vertical stress on the underlying soil is significantly reduced, thereby inhibiting settlement.
Application Scenarios
Road and Highway Engineering
Parking Lots and Freight Yards
Railway Subgrade and Track Bed
Shallow Foundations on Soft Soil
Frequently Asked Questions (FAQ)
Q1: Can Biaxial Geogrid replace steel reinforcement?
No, it cannot completely replace it. Steel reinforcement is used in the tension zone of concrete, primarily to withstand extremely high concentrated tensile stress; geogrid is used in soil, primarily providing restraint and diffusion. They belong to different application areas.
Q2: What is the service life of biaxial geogrid?
Under normal operating conditions (pH 3-9, no severe oxidation, burial depth ≥ 0.5m), the design life of high-quality HDPE or PP geogrid can reach 50-120 years.
Q3: Can it be used in frozen soil areas?
Yes. Biaxial geogrid has some adaptability to frost heave and thaw settlement, but it needs to be used in conjunction with appropriate drainage measures and frost-resistant layer design.
Q4: How to judge the quality of geogrid?
Simple methods:
Tensile strength test (go to a third-party laboratory)
Check if the joints are easily pulled apart
Observe the uniformity of carbon black dispersion (HDPE)
Request a long-term creep test report
Q5: Are Biaxial Geogrid and Biaxial Plastic Geogrid the same thing?
Yes. Biaxial Plastic Geogrid usually specifically refers to a two-way geogrid made of plastic, and is basically interchangeable with "Biaxial Geogrid" in everyday language. Fiberglass Biaxial Geogrid is different; it has a higher elastic modulus but extremely low elongation and is not resistant to long-term creep.
