What Makes a Good Geocell for Road Foundation?

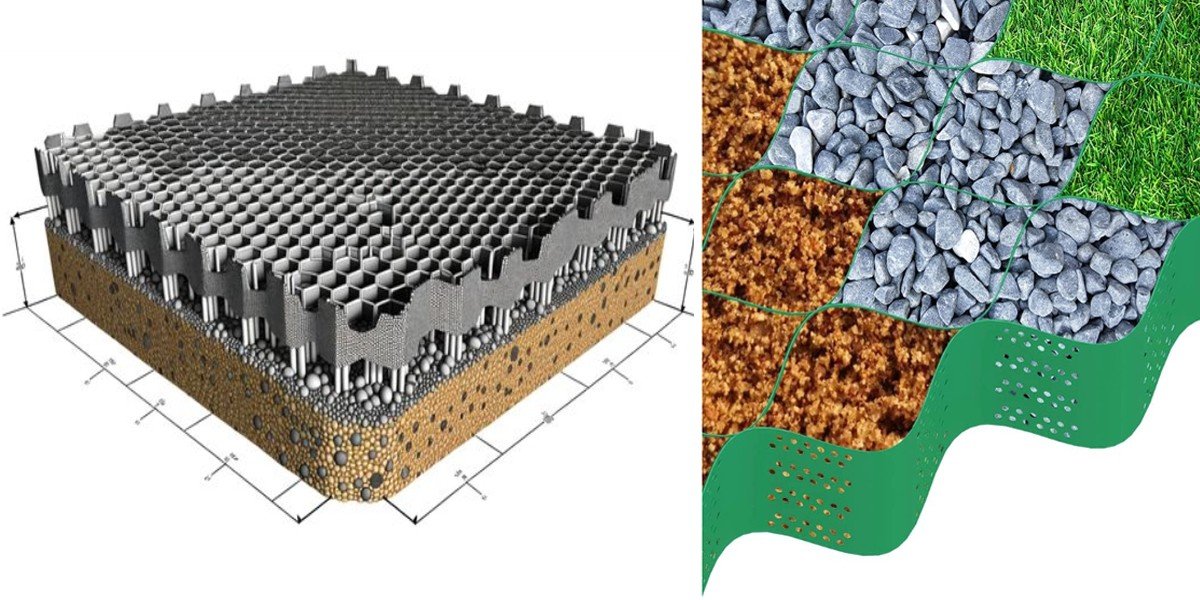

The fundamental role of geocells in roadbed reinforcement. This three-dimensional honeycomb structure restricts the flow of fillers (such as sand, gravel, or even recycled concrete), forming a semi-rigid cushion layer that disperses vertical loads laterally.

Choosing the right geocell can achieve the following goals:

• Reducing layer thickness (saving up to 50% of granular fillers)

• Increasing the bearing capacity of weak roadbeds

• Controlling differential settlement

• Providing long-term durability under cyclic traffic loads

• However, not all geocells offer these advantages. When selecting geocells, material quality, dimensional accuracy, and environmental tolerance must be considered.

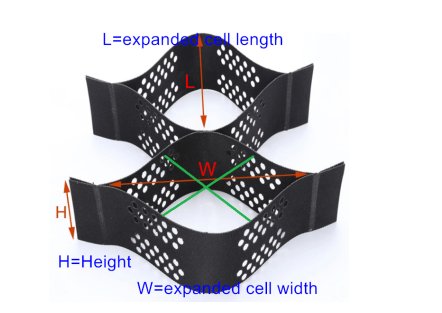

Critical Geocell Specifications for Road Engineers

2.1 Geocell Height – The Foundation's Backbone

Geocell height is arguably the most visible specification. It typically ranges from 50 mm to 300 mm. For road foundation reinforcement, common heights are:

• 75 mm – Light-duty pavements, walkways

• 100 mm – Secondary roads, parking lots

• 150 mm – Primary highways, heavy haul roads

• 200 mm – Industrial yards, rail embankments

Why height matters: Taller geocells provide deeper confinement, increasing moment resistance against bending. However, excessive height demands more fill material and may complicate compaction. When selecting geocell height, match it to your anticipated wheel load and subgrade stiffness.

Practical tip: For asphalt roads over soft clay (CBR < 2%), a 150 mm geocell with crushed stone fill often yields the best cost-performance ratio.

2.2 Weld Strength – The Hidden Weak Point

During geocell selection, most buyers focus on sheet thickness while ignoring weld strength. Yet field failures frequently start at the welds — the points where HDPE strips join to form cells.

Key metrics:

• Peel strength (ASTM D7877): minimum 10 kN/m (or as specified)

• Tensile strength at weld: should be at least 70-80% of parent material strength

Low weld strength causes cell opening under lateral pressure — essentially your geocell becomes a loose grid. For road foundation reinforcement, specify ultrasonic welded geocells with documented weld strength test reports.

2.3 Tensile Strength of Parent Sheets

While weld strength addresses joint integrity, the base tensile strength of HDPE sheets determines overall robustness. Values typically range from 15 kN/m to 30 kN/m.

For highway applications, aim for tensile strength ≥ 20 kN/m. This ensures the geocell can withstand tensile hoop stresses when fill pushes outward.

2.4 Sheet Thickness – Not as Critical as You Think

Common geocell specifications list thickness from 1.0 mm to 1.8 mm. Thicker sheets theoretically offer greater durability, but:

Marginal benefits beyond 1.5 mm for most road foundations

Thickness significantly impacts cost (material weight)

Oxidation resistance (carbon black content) matters more than thickness in UV-rich environments

2.5 Cell Size (Aperture / Weld Pitch)

Cell size influences how well the geocell interlocks with fill. Typical pitches:

• 330 mm x 330 mm – standard for sand/gravel

• 445 mm x 445 mm – coarse aggregates

• 250 mm x 250 mm – fine soils or vegetative applications

When fill particles can slide out, confinement is lost. Ensure the smallest cell dimension is at least 3-4 times the D85 of your fill material.

2.6 Material Composition and Density

High-Density Polyethylene (HDPE) with a density ≥ 0.94 g/cm³ is the standard. Avoid recycled or low-density blends. Additionally, check:

Carbon black content (2-3% for UV protection)

Oxidation Induction Time (OIT) – high values indicate long-term heat resistance

For aggressive chemical environments (e.g., acidic mining spoils), request specific chemical resistance data.

 Frequently Asked Questions (FAQ)

Q1: Can I use the same geocell for road foundation and slope protection?

Yes and no. While a geocell is versatile, the key parameters differ. For slopes, focus on long-term UV stability and lower height. For road foundation reinforcement, prioritize weld strength and fill confinement.

Q2: What is the typical lifespan of a geocell-reinforced road?

Properly selected HDPE geocells have a service life exceeding 50 years. UV degradation is minimal when covered by fill/asphalt.

Q3: How does geocell compare to geogrid for roads?

Geogrids provide planar reinforcement but lack the third dimension. Geocells offer both vertical confinement and horizontal load distribution, often outperforming geogrids on very soft subgrades. However, for well-compacted granular subgrades, a geogrid may be more cost-effective.

Q4: Do I need a geotextile under the geocell?

Often yes. A separation/filtration geotextile prevents fine subgrade soil from pumping into the geocell fill. On clean, well-drained sand subgrades, you may skip it.

Q5: Is bigger cell size always better?

No. Larger cells reduce confinement effectiveness for fine fills. Always match cell size to the D85 of your fill material.
