Geosynthetic Clay Liner (GCL) is a composite material consisting of two layers of geotextile with bentonite wrapped in the middle. It combines the high strength of geotextile and the excellent anti-seepage performance of bentonite. It has the advantages of excellent anti-seepage performance, convenient construction, strong self-healing ability, etc. It is widely used in anti-seepage projects such as landfills, tailings ponds, and artificial lakes.
Sodium bentonite geosynthetic clay liner | |||||
No | Items | Technical Specifications | |||
GCL－NP | GCL－OF | GCL－AH | |||
1 | Mass of bentonite /unit area /(g/m²) | ≥4000 & ≥ the specified value. | ≥4000 & ≥ the specified value. | ≥4000 & ≥ the specified value. | |
2 | Bentonite swell index /(mL/2g) | ≥24 | ≥24 | ≥24 | |
3 | Blue absorption value/(g/100g) | ≥30 | ≥30 | ≥30 | |
4 | Tensile strength /(N/100mm) | ≥600 | ≥700 | ≥600 | |
5 | Max Load Elongation Percentage/% | ≥10 | ≥10 | ≥8 | |
6 | Peel strength/（N/100mm） | Nonwoven Fabric & Woven Fabric | ≥40 | ≥40 | —— |
PE Membrane & Nonwoven Fabric | —— | ≥30 | —— | ||
7 | Permeability Coefficient/(m/s） | ≤5.0×10-11 | ≤5.0×10-12 | ≤1.0×10-12 | |
8 | Hydrostatic Pressure Resistance | 0. 4MPa, 1h，No Leakage | 0. 6MPa, 1h，No Leakage | 0. 6MPa, 1h， | |
9 | Filtration Loss/mL | ≤18 | ≤18 | ≤18 | |
10 | Bentonite Durability/(mL/2g) | ≥20 | ≥20 | ≥20 | |
Features:
Excellent anti-seepage performance: bentonite swells in water to form a dense gel, with extremely low permeability coefficient and excellent anti-seepage performance.
Easy to construct: light weight, easy to carry and lay, high construction efficiency.
Strong self-healing ability: bentonite has self-healing ability and can automatically repair damage caused by external forces.
Resistant to chemical corrosion: bentonite has good resistance to chemical corrosion and is suitable for various complex environments.
Environmentally friendly and non-toxic: bentonite is a natural mineral material, environmentally friendly and non-toxic, and does not pollute the environment.
Application Fields:
Landfill: Used for anti-seepage of the bottom and side walls of landfill.
Tailing pond: Used for anti-seepage of the bottom and dam of tailing pond.
Artificial lake: Used for anti-seepage of the bottom and slope of artificial lake.
Other areas: Used for anti-seepage of sewage treatment plants, oil tank areas, chemical storage areas and other projects.
Customized Service:
Specification customization: GCL with different thickness, width, length and other specifications can be customized according to customer needs.
Bentonite type customization: Bentonite with different sodium levels can be selected according to customer needs.
Geotextile type customization: Geotextile with different materials and weights can be selected according to customer needs.
Packaging customization: Different packaging methods can be customized according to customer needs, such as roll packaging, pallet packaging, etc.
Production Scenario:
Raw material preparation: Select high-quality bentonite and geotextile, and undergo strict quality inspection.
Bentonite processing: Dry, crush, screen and process the bentonite.
Geotextile suturing: Sew two layers of geotextile to form a bag-like structure.
Bentonite filling: Fill the processed bentonite into the geotextile bag.
Quality inspection: Strict quality inspection of the finished product to ensure that the product meets national standards and customer requirements.
Certificates:
Product quality certification: Passed ISO9001 quality management system certification, CE certification, etc.
Product test report: Provide product test reports issued by authoritative organizations.
FAQ:
Q: How long is the service life of GCL?
A: The service life of GCL can reach more than 50 years, and the specific service life depends on the use environment and construction quality.
Q: What are the construction methods of GCL?
A: The construction methods of GCL mainly include laying, overlapping, fixing and other steps. For specific construction methods, please refer to relevant specifications or consult professionals.
Q: What is the price of GCL?
A: The price of GCL is affected by factors such as specifications, quantity, and transportation distance. Please consult relevant manufacturers for specific prices.

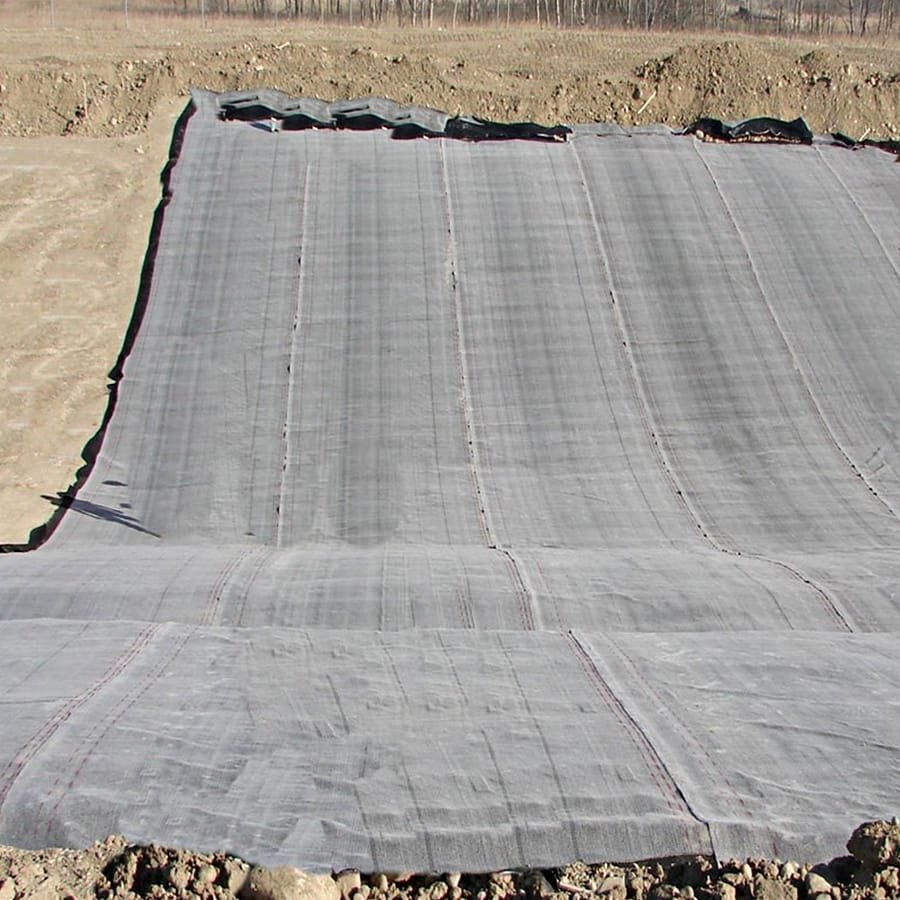

Geosynthetic Clay Liner (GCL)
