What Is a Geocell?

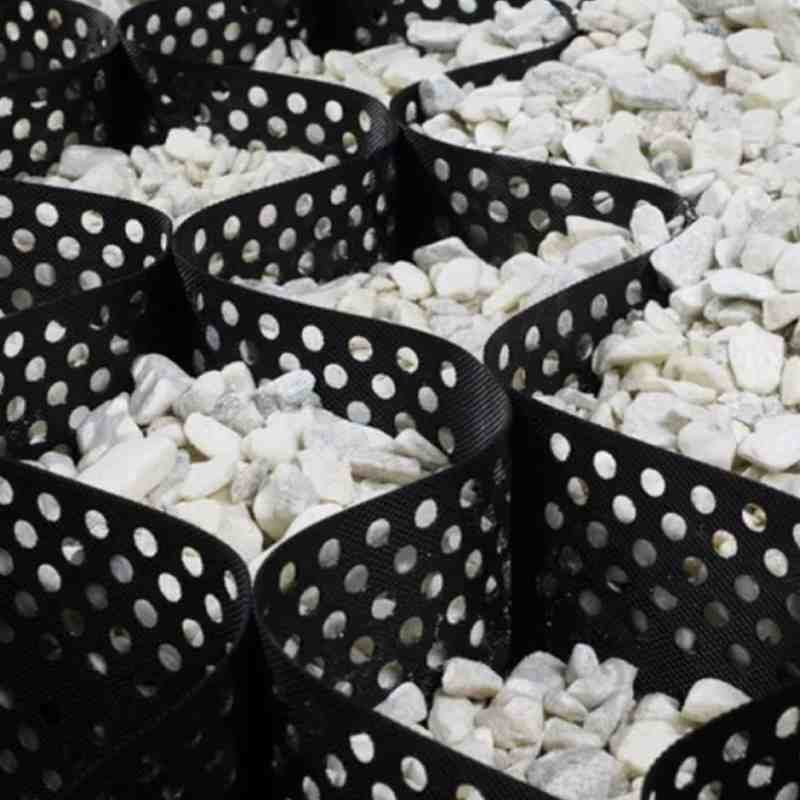

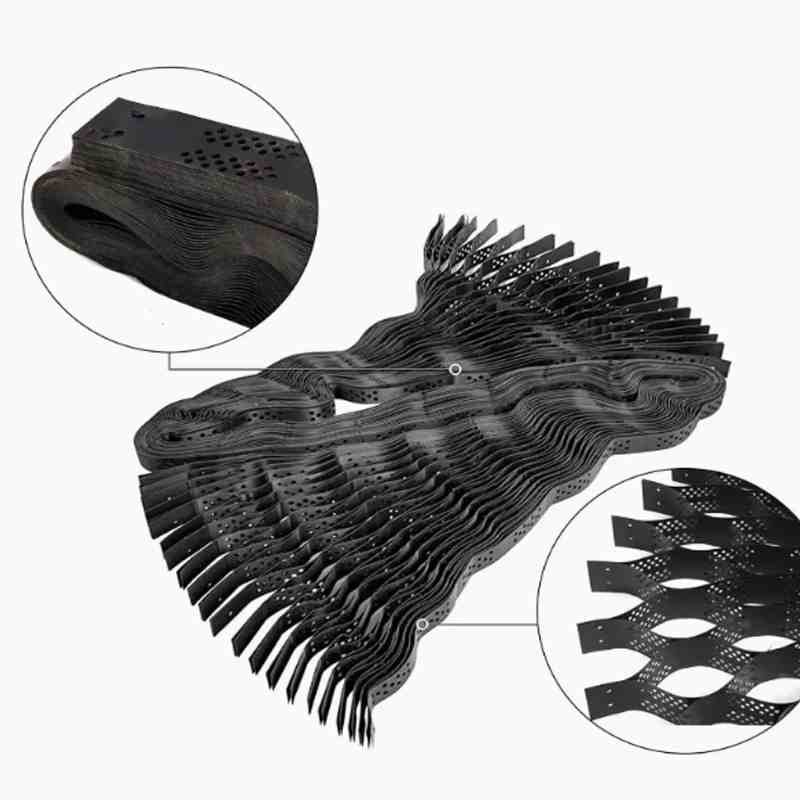

A geocell is a three-dimensional honeycomb-like cellular confinement system made from high-density polyethylene (HDPE). When expanded and filled with soil, gravel, or sand, it creates a semi-rigid slab that distributes loads effectively.
The technology is widely used in:
Road base reinforcement
Highway subgrade stabilization
Temporary access roads
Mining haul roads
Airport pavements
Why Geocell Is Essential in 2026 Road Construction
1. Increased Traffic Loads
Modern logistics, mining, and heavy transport industries demand stronger road foundations.
2. Weak Soil Conditions
Many rural and industrial projects are built on clay, sand, or soft subgrades.
3. Sustainability Requirements
Compared to thick aggregate layers, geocell reduces stone usage and carbon emissions.
4. Compliance with International Standards
Road engineering projects often follow guidelines from organizations such as ASTM International and ISO
Proper geocell selection must align with these standards.
Key Factors When Choosing Geocell for Road Construction
1. Raw Material Quality (HDPE vs Recycled Material)
High-quality geocell should use virgin HDPE resin.
Why this matters:
Better tensile strength
Improved environmental stress crack resistance
Longer service life (20–50 years)
Low-grade recycled materials reduce creep resistance and structural stability.
| Road Type | Recommended Thickness |
|---|---|
| Light traffic road | 1.0 – 1.2 mm |
| Medium traffic | 1.2 – 1.5 mm |
| Heavy truck road | 1.5 – 1.7 mm |
2.Welding Distance (Cell Size)
Common weld distances:
330 mm
356 mm
445 mm
660 mm
Smaller cell size provides:
Better confinement
Higher load distribution
Stronger subgrade support
For soft soil conditions, smaller weld spacing performs better.
3.Cell Height
Typical heights:
50 mm
75 mm
100 mm
150 mm
200 mm
Selection logic:
50–75 mm → surface stabilization
100–150 mm → road base reinforcement
200 mm → very soft subgrade
Higher cells increase bearing capacity but also increase material cost.
Matching Geocell to Different Road Types
1. Rural Roads
For rural projects, such as government infrastructure programs in countries like
India
Recommended:
100 mm height
1.2 mm thickness
330–356 mm weld spacing
2. Highway Subgrade
For highways:
150 mm height
1.5 mm thickness
High weld strength
3. Mining Haul Roads
Mining trucks generate extremely high axle loads.
Recommended:
150–200 mm height
1.5–1.7 mm thickness
Small cell size
High weld peel strength
4. Temporary Access Roads
Cost efficiency matters more.
Recommended:
75–100 mm height
1.0–1.2 mm thickness
Common Mistakes When Choosing Geocell
Selecting lowest price without checking material quality
Ignoring weld strength
Using insufficient cell height
Not evaluating creep performance
Overlooking supplier experience
How to Select a Reliable Geocell Supplier
When choosing a supplier:
Check export experience
Verify compliance with ASTM standards
Request sample testing
Evaluate production capacity
Confirm delivery time
A professional supplier should provide:
Technical datasheets
Engineering design assistance
Installation manuals
Always request:
Test reports
Raw material certification
Project references
Installation guidance
Choosing the right geocell for road construction in 2026 requires technical understanding, proper specification matching, and supplier evaluation.
Key points:
Use virgin HDPE
Match thickness and height to load conditions
Verify weld strength
Check creep performance
Ensure proper installation
With correct selection, geocell systems can significantly increase road durability, reduce maintenance cost, and improve overall project sustainability.
