PET woven geotextile is a geosynthetic material made of polyester (PET) through a weaving process. It is woven with high-strength polyester fibers and has the characteristics of high strength, good creep resistance, and excellent durability. It is widely used in various civil engineering, water conservancy engineering, environmental engineering and other fields.
| Properties | Test Method | Unit | WG100/100PET | WG200-200PET | WG300-100PET |
| Strength@Ultimate(MD) | ASTMD4595 | kN/m | 100 | 200 | 300 |
| Strength@Ultimate(TD) | ASTM D4595 | kN/m | 100 | 200 | 100 |
| Elongation MD | ASTM D4595 | % | 10±2 | 10±2 | 10±2 |
| Strength@5%Strain(MD) | ASTM D4595 | kN/m | 42 | 85 | |
| CBR Strength | EN ISO 12236 | kN | 7.5 | 10.6 | 8.9 |
| Drop Strength | EN 918 | mm | 11 | 10 | 11 |
| Creep Reduced Strength(MD) | ASTMD 5262 | kN/m | 69 | 140 | 205 |
| Long Term Design Strength(MD) | GR-GT7 | kN/m | 57 | 118 | 170 |
| Apparent Open Size | ASTM D4751 | mm | ≤0.55 | ≤0.55 | ≤0.55 |
| Flow Rate | ASTM D4491 | L/m2/S | 15-20 | 15 | 15 |
| Roll Width | m | 5.2 | 5.2 | 5.2 | |
| Roll Length | m | 100 | 100 | 100 |
Features:
High Strength: Made of high-strength polyester fiber, it has excellent mechanical properties such as tensile strength, tear strength, and bursting strength, and can withstand large loads.
Good creep resistance: Polyester material has good creep resistance and can maintain stable performance for a long time.
Excellent durability: Polyester material has good acid and alkali resistance, chemical corrosion resistance, UV resistance, and oxidation resistance, and has a long service life.
Good water permeability: It has good vertical and horizontal water permeability, can effectively remove moisture from the soil, and prevent water accumulation from damaging the project.
Good filtration performance: It can effectively prevent the loss of soil particles while allowing water to pass through, playing a good filtering role.
High temperature resistance: Polyester material has a high melting point and has good high temperature resistance.
Convenient construction: Light weight, easy to cut and lay, and high construction efficiency.
Application Fields:

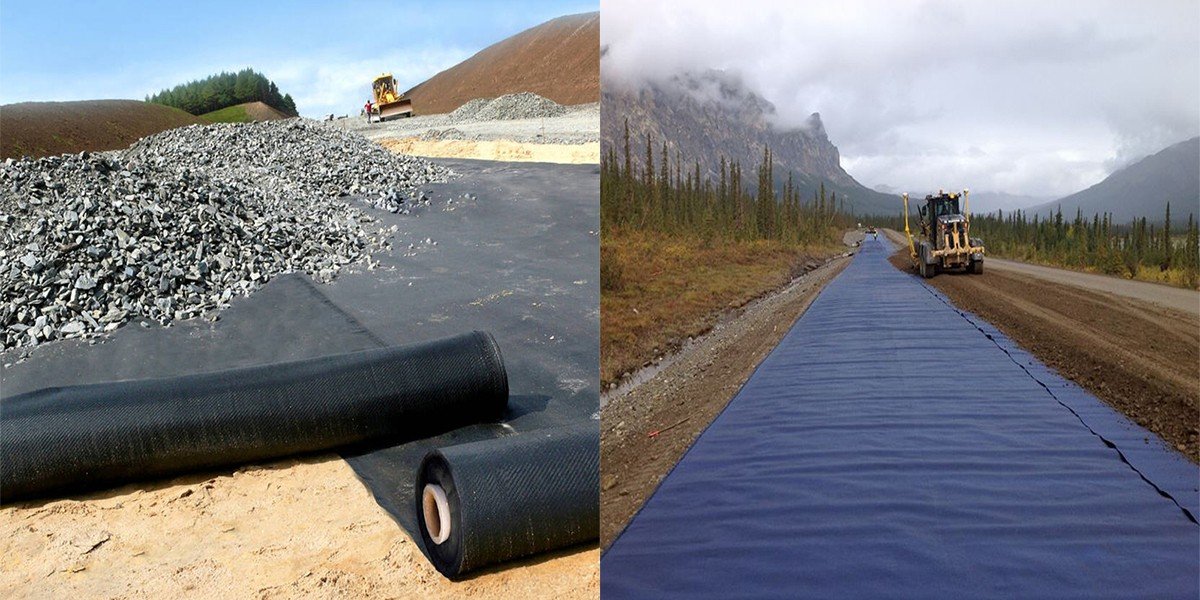

Civil engineering: used for roadbed reinforcement, drainage, and isolation of highways, railways, airports, and other projects.
Water conservancy projects: used for anti-seepage, anti-filtration, and drainage of dams, reservoirs, channels, and other projects.
Environmental engineering: used for anti-seepage, filtration, and drainage of landfills, tailings ponds, and other projects.
Construction engineering: used for waterproofing and moisture-proofing of basements, roofs, and other projects.
Other fields: used in landscaping, agricultural horticulture, and other fields.
Customized Service:
Specification customization: PET woven geotextiles with different weight, thickness, width, length and other specifications can be customized according to customer needs.
Color customization: PET woven geotextiles with different colors can be customized according to customer needs, such as white, black, green, etc.
Packaging customization: Different packaging methods can be customized according to customer needs, such as roll packaging, pallet packaging, etc.
Production Scenario:
Raw material preparation: Select high-quality polyester raw materials and undergo strict quality inspection.
Flat/round yarn production: Process polyester raw materials into flat yarn or round yarn.
Weaving process: Use advanced weaving equipment to weave flat yarn or round yarn into geotextile.
Finishing: Perform finishing processes such as heat setting and coating on geotextile to improve its performance.
Quality inspection: Strict quality inspection of finished products to ensure that the products meet national standards and customer requirements.
Shipping Scenario:
Logistics and transportation: Use professional logistics and transportation methods to ensure that products are delivered to customers safely and promptly.
On-site guidance: Provide professional on-site guidance services to assist customers in product laying and construction.
Certificates:
Product quality certification: Passed ISO9001 quality management system certification, CE certification, etc.
Product test report: Provide product test reports issued by authoritative organizations.
FAQ:
Q: How long is the service life of PET woven geotextile?
A: The service life of PET woven geotextile can reach more than 10 years, and the specific service life depends on the use environment and construction quality.
Q: What are the construction methods of PET woven geotextile?
A: The construction methods of PET woven geotextile mainly include laying, overlapping, fixing and other steps. For specific construction methods, please refer to relevant specifications or consult professionals.
Q: What is the price of PET woven geotextile?
A: The price of PET woven geotextile is affected by factors such as specifications, quantity, and transportation distance. Please consult relevant manufacturers for specific prices.
