Pond liner (high-density polyethylene geomembrane) is a waterproof material made of high-density polyethylene resin, which is widely used in civil engineering and environmental protection. The following are its main features and applications:
High-density polyethylene (HDPE): has excellent chemical stability, corrosion resistance and UV resistance.
Thickness: usually between 0.2mm and 3.0mm, can be customized according to requirements.
Color: Common colors are black and white, and other colors can also be customized according to requirements.
Features:
Excellent anti-seepage performance: extremely low permeability coefficient, effectively preventing liquid and gas penetration.
Chemical corrosion resistance: can resist erosion by a variety of chemical substances such as acid, alkali, salt, etc.
Anti-ultraviolet: added anti-ultraviolet agent, suitable for long-term outdoor use.
High mechanical strength: excellent tensile, tear and puncture resistance, adaptable to complex terrain.
Environmentally friendly and non-toxic: the material is recyclable and meets environmental standards.
Long service life: under normal use conditions, the service life can reach more than 50 years.
Properties | Test Method | GMSH050 | GMSH075 | GMSH100 | GMSH150 | GMSH300 |
■ Thickness | ASTM D5199 | 0.50 mm | 0.75 mm | 1.00 mm | 1.50 mm | 3.00 mm |
■ Density | ASTM D1505 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc |
Tensile Properties | ||||||
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation | ASTM D6693 Type IV
| 7 kN/m 13 kN/m 12% 700% | 11 kN/m 20 kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 41 kN/m 82 kN/m 12% 700% |
■ Tear Resistance | ASTM D1004 | 62 N | 93 N | 125 N | 187 N | 375 N |
■ Puncture Resistance | ASTM D4833 | 160 N | 240 N | 320 N | 480 N | 960 N |
■ Stress Crack Resistance | ASTM D5397 | 500 hrs | 500 hrs | 500 hrs | 500 hrs | 500 hrs |
■ Carbon Black Content | ASTM D1603 | 2.0% | 2.0% | 2.0% | 2.0% | 2.0% |
■ Carbon Black Dispersion | ASTM D5596 | For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 | ||||
■ Oxidative Induction Time (OIT) | ASTM D3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. |
■ UV Resistance High Pressure OIT retained after 1600hrs |
ASTM D5885 |
50% |
50% |
50% |
50% |
50% |
Dimensions | ||||||
■ Roll Width (m) | 7 | 7 | 7 | 7 | 7 | |
■ Roll Length (m) | 420 | 280 | 210 | 140 | 50 | |
Application areas:
Aquaculture: used for anti-seepage of aquaculture water bodies such as fish ponds and shrimp ponds to maintain stable water quality and water volume.
Agricultural irrigation: used for reservoirs, irrigation pools, etc. to prevent water waste.
Landscape pools: used for artificial lakes, landscape ponds, etc. to beautify the environment and prevent leakage.
Rainwater collection: used for anti-seepage of rainwater collection pools to store rainwater resources.
Other fields: anti-seepage projects such as biogas pools and sewage treatment pools.
Customized service:
Size customization: Provide different thicknesses (0.2mm-3.0mm), widths (1m-8m) and lengths according to customer needs.
Color customization: In addition to the common black and white, other colors can be customized.
Performance customization: Adjust the anti-ultraviolet, anti-aging and other properties according to specific project requirements.
Packaging customization: Provide roll packaging or folding packaging for easy transportation and construction.

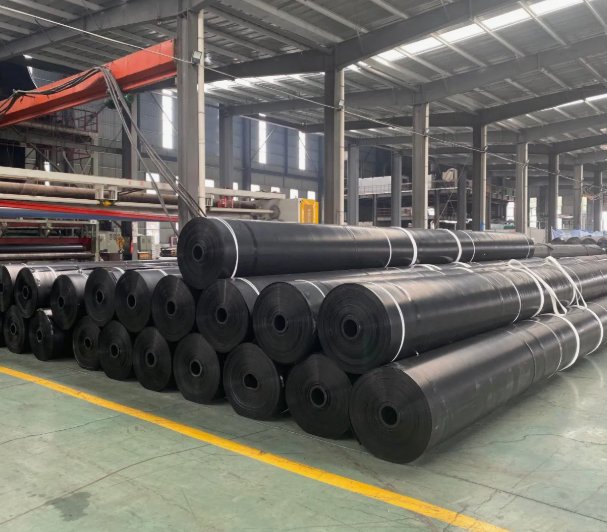

Production scenario:
Raw material selection: Use high-quality high-density polyethylene resin to ensure product quality.
Production process: Produced by blow molding or calendering process to ensure uniform thickness and stable performance.
Quality inspection: Each batch of products undergoes strict permeability, tensile strength and other tests.
Production environment: Modern production line, equipped with automated equipment and professional technicians.
Shipping scenario:
Packaging method: Use waterproof and dustproof packaging to ensure that it is not damaged during transportation.
Transportation method: Support land, sea and air transportation to meet the needs of global customers.
Shipping efficiency: Provide fast delivery service according to order requirements.
Logistics tracking: Provide full logistics tracking service to ensure the safe delivery of goods.
Certificates:
Quality certification: Passed ISO9001 quality management system certification.
Environmental certification: Complies with RoHS, REACH and other environmental standards.
Test report: Provide permeability, tensile strength and other test reports issued by a third-party testing agency.
Industry certification: Obtain professional certification in the fields of water conservancy, environmental protection, etc.
FAQ:
Q: How long is the life of HDPE geomembrane?
A: Under normal use conditions, the life span can reach more than 50 years.
Q: What chemicals can HDPE geomembrane resist?
A: It can resist a variety of chemicals such as acids, alkalis, salts, oils, etc.
Q: What should be paid attention to during construction?
A: The foundation needs to be flat and free of sharp objects, the seams need to be welded firmly, and the construction environment should avoid bad weather.
Q: How to detect the quality of HDPE geomembrane?
A: It can be ensured that there is no leakage through methods such as air tightness detection and electric spark detection.
Q: Can special sizes and colors be customized?
A: Yes, we provide customized services for thickness, width, length and color.
Q: How to ensure that the product is not damaged during transportation?
A: It uses waterproof and dustproof packaging and provides full logistics tracking services.

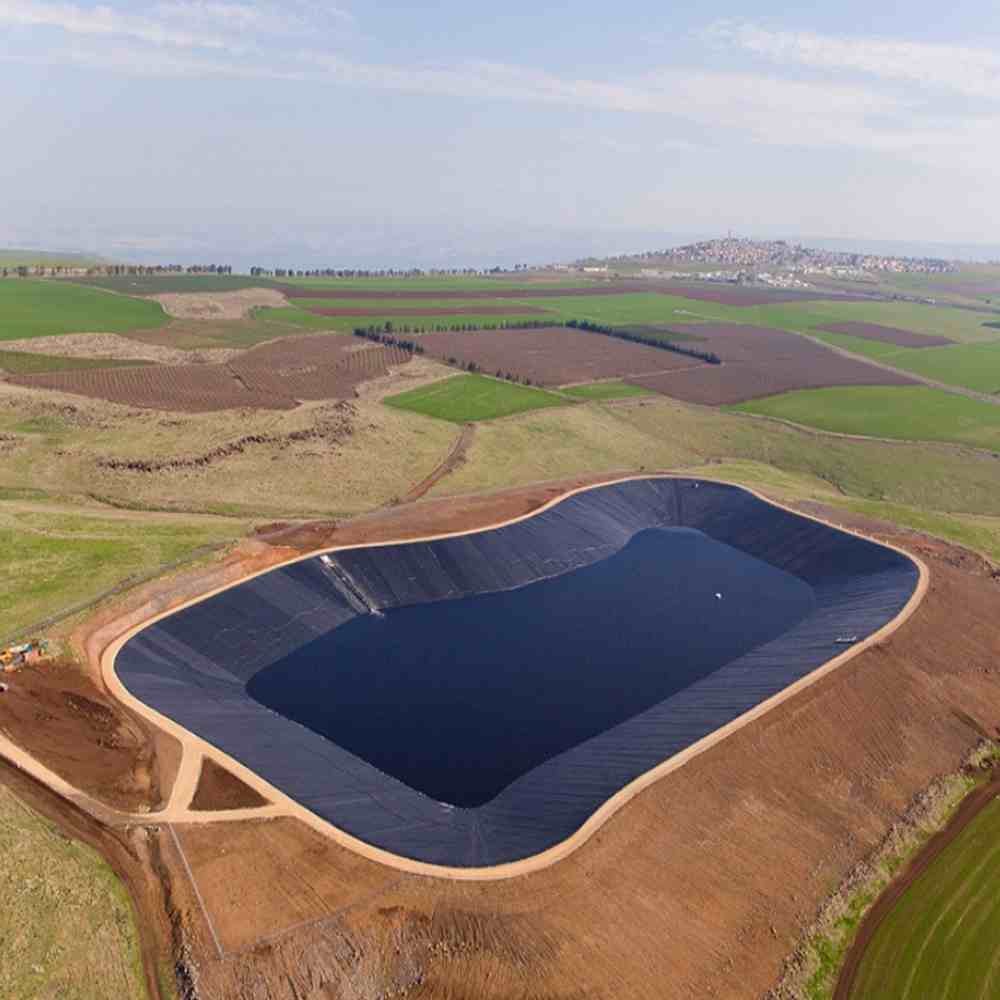

Pond Liners
Pond liner is used as anti-seepage material for ponds, fish ponds, artificial lakes and other water bodies, usually made of high-density polyethylene (HDPE). It has excellent anti-seepage performance, weather resistance and UV resistance, can effectively prevent water leakage and maintain water level stability, and is widely used in aquaculture, agricultural irrigation, landscape pools and other fields.
