PP staple non-woven geotextile is a permeable geosynthetic material made of polypropylene staple fibers through a needle-punching process. It has excellent filtration, drainage, isolation, reinforcement, and protection properties. The product is characterized by light weight, high strength, corrosion resistance, and anti-aging.
Properties | TestMethod | Unit | GXSF150 | GXSF200 | GXSF300 | GXSF400 | GXSF500 | GXSF600 | GXSF800 | GXSF1000 |
Tensile Strength (MD/TD) | ASTM D4595 | kN/m | 8 | 11 | 20 | 24 | 28 | 34 | 48 | 50 |
Tensile Elongation (MD/TD) | ASTM D4595 | % | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Grab Tensile Strength (MD/TD) | ASTM D4632 | N | 520 | 700 | 1100 | 1500 | 1800 | 2200 | 2800 | 3000 |
Grab Elongation (MD/TD) | ASTM D4632 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 |
Trapezoidal Tear Strength (MD/TD) | ASTM D4533 | N | 220 | 330 | 400 | 480 | 560 | 620 | 860 | 880 |
CBR Burst Strength | ASTM D6241 | N | 1700 | 2400 | 3200 | 4300 | 5300 | 6000 | 6800 | 7000 |
Pore Size O90 | ASTM D4751 | µm | 90 | 85 | 80 | 75 | 70 | 60 | 55 | 50 |
Water Flow Q100 | ASTM D4491 | L/m2/s | 160 | 145 | 140 | 120 | 105 | 95 | 90 | 80 |
Weight | ASTM D5261 | g/m2 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Roll Width | - | m | 5.95 | 5.95 | 5.95 | 5.95 | 5.95 | 3.95 | 3.95 | 3.95 |
Roll Length | - | m | 250 | 150 | 100 | 100 | 75 | 50 | 50 | 50 |
Product Features:
Excellent water permeability: Rapid drainage, preventing water pressure buildup;
High tensile strength and elongation: Enhanced structural stability;
Corrosion and UV resistance: Suitable for a variety of soil and climate conditions;
Environmentally friendly and non-toxic: No pollution to water or soil;
Easy to install: Can be cut and spliced, suitable for complex terrains.
Application fields:
Highway and Railway Engineering: Roadbed stabilization, slope protection, and bridgehead derailment control
Construction and Foundation Engineering: Isolation and drainage layers;
Tunnel and Underground Engineering: Composite protection and drainage structures;
Water Conservancy and Environmental Engineering: River management, artificial lakes, and landfill liner systems;
Agriculture and Horticulture: Greening projects, vegetation maintenance, and surface isolation.
Customized service:
Specification customization: PET short non-woven geotextiles with different weight, thickness, width, length and other specifications can be customized according to customer needs.
Color customization: PET short-filament non-woven geotextiles with different colors can be customized according to customer needs, such as white, black, green, etc.
Packaging customization: Different packaging methods can be customized according to customer needs, such as roll packaging, pallet packaging, etc.

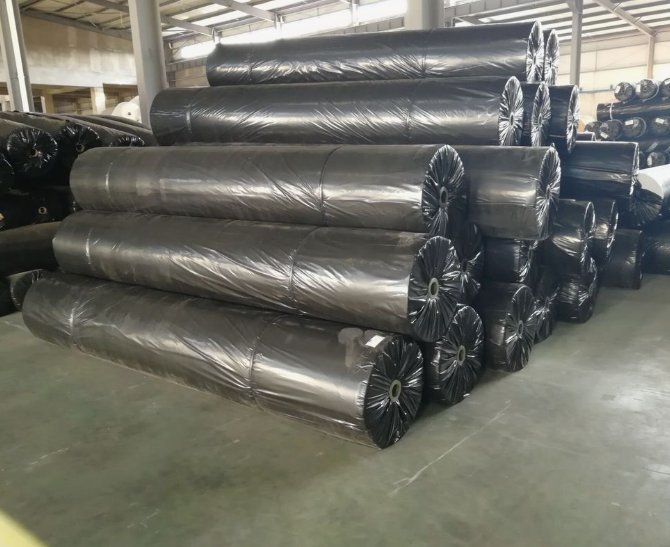

Shipping scenario:
Logistics and transportation: Use professional logistics and transportation methods to ensure that the products are delivered to customers safely and promptly.
On-site guidance: Provide professional on-site guidance services to assist customers in product laying and construction.
Certificates:
Product quality certification: Passed ISO9001 quality management system certification, CE certification, etc.
Product test report: Provide product test reports issued by authoritative organizations.
FAQ
Is PP short-filament geotextile waterproof?
A: PP short-filament geotextile itself is not waterproof. It is a permeable material used for drainage and filtration. If waterproofing is required, please choose HDPE geomembrane, composite geomembrane, or waterproof coating.
Are custom sizes available?
A: Yes. Common widths include 1m, 2m, 4m, and 6m, and lengths range from 50 to 200 meters per roll. Custom sizes are available. Weight, color, and packaging can also be customized.
Can it be used in landfill or river anti-seepage projects?
A: Yes. PP short-filament non-woven geotextile is typically used as a protective layer or drainage layer in anti-seepage systems. Used in conjunction with HDPE geomembrane or geotextile closure (GCL), it protects the membrane, prevents punctures, and facilitates water drainage.
What is the service life of PP short-filament geotextile?
A: Under normal underground use, it can last over 50 years. In exposed environments, it requires the addition of a UV inhibitor; otherwise, its service life will be significantly shortened. (It is recommended to apply a sunscreen cover or backfill as soon as possible.)
Are there test reports or third-party certifications?
A: Yes. We can provide test reports meeting the national standard (GB/T 17638), the European standard CE, and the American standard ASTM. We can also provide certifications such as SGS, BV, and ISO based on customer export or project requirements.
