HDPE Geocell - Durable Ground Stabilization Solutions

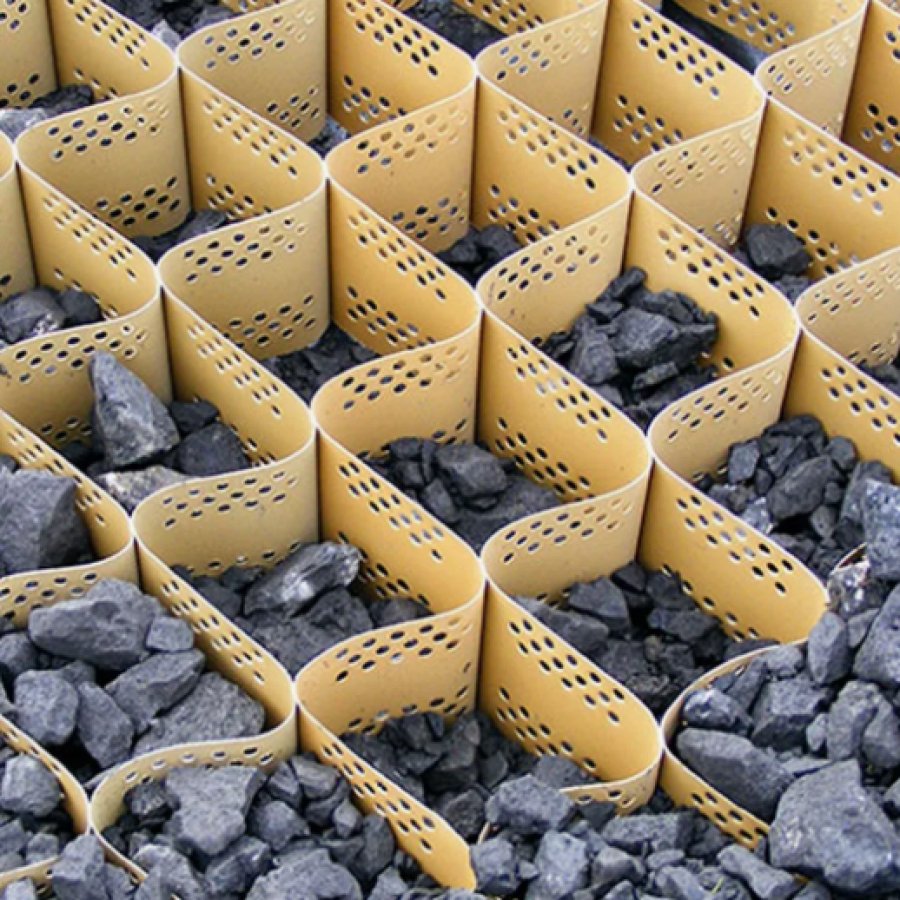

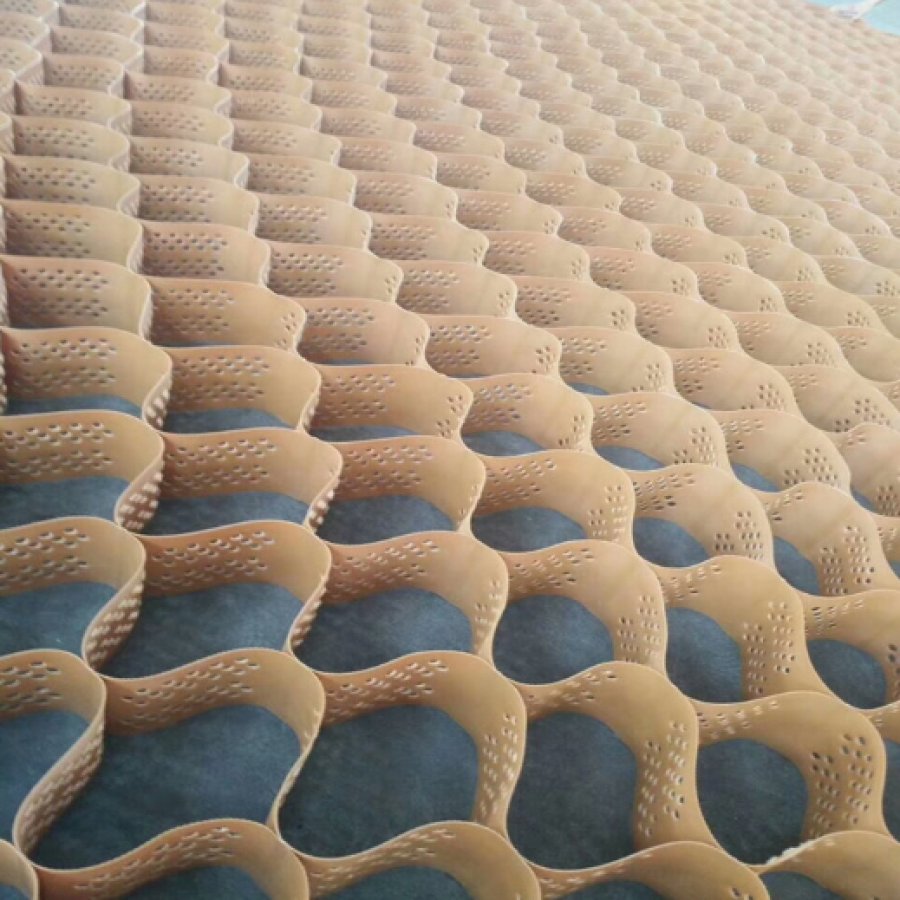

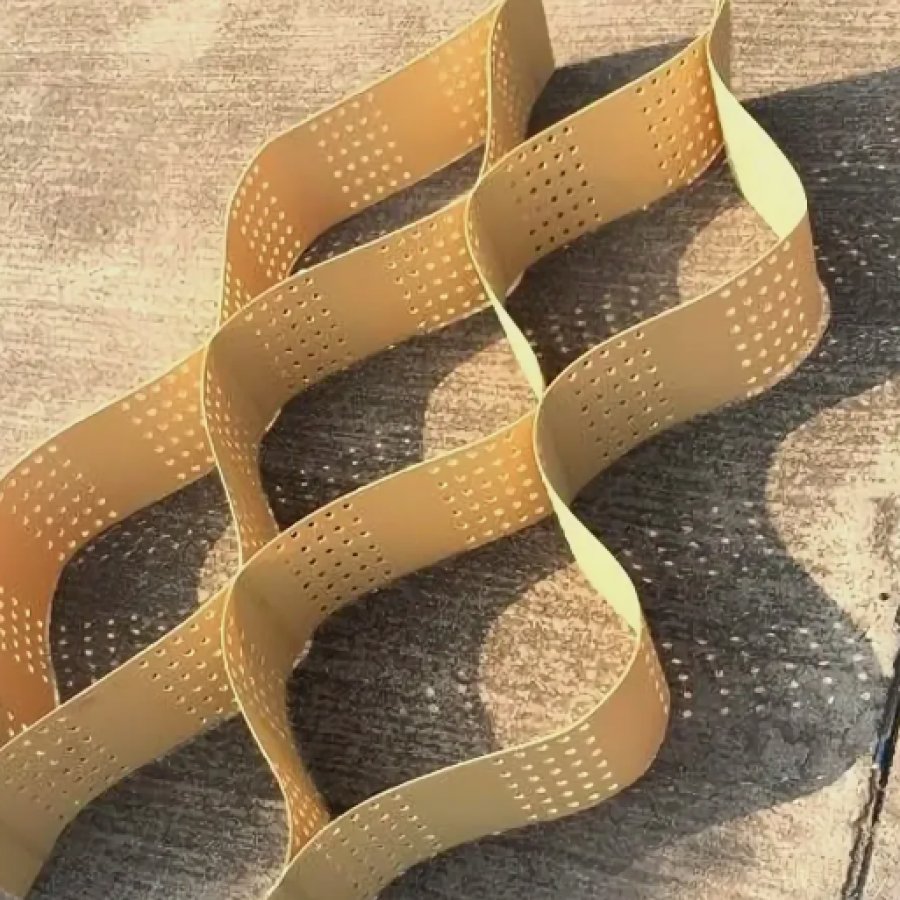

Geocell is a three-dimensional honeycomb geosynthetic material, usually made of high-density polyethylene (HDPE), connected into a mesh structure by ultrasonic welding, stretched on site to form a spatial grid, and used to form a structurally stable reinforcement layer after filling.

When used for slope reinforcement, geocell locks the soil through its honeycomb structure, improving the overall stability and anti-scouring ability of the slope.

Product Features

• High-strength honeycomb structure; effectively prevents soil lateral displacement and loss, and has a stable structure.

• Excellent anti-slip performance; the cell combines with the soil to form a composite stable structure, which greatly improves the shear strength of the slope.

• Strong adaptability; suitable for different slopes and terrains (steep slopes, gentle slopes, side ditches, etc.).

• Convenient installation; folded for transportation, unfolded on site for use, simple construction and high efficiency.

• Environmentally friendly and durable; HDPE material is corrosion-resistant, UV-resistant, and weather-resistant, with a service life of more than 50 years.

Applicable fields

• Highway and railway slope protection

• Riverbank and dam slope reinforcement

• Reservoir and artificial lake bank slope stabilization

• Mountain greening and slope ecological restoration

• Industrial park and quarry slope improvement

• Temporary or permanent slope retaining support

Customized service:

• Specification customization: HDPE geocells with different heights, weld distances, sheet thicknesses, colors, etc. can be customized according to customer needs.

• Connector customization: Connectors with different materials and specifications can be customized according to customer needs.

• Packaging customization: Different packaging methods can be customized according to customer needs, such as roll packaging, pallet packaging, etc.

Production scenario:

• Raw material preparation: Select high-quality HDPE raw materials and undergo strict quality inspection.

• Sheet production: Process HDPE raw materials into sheets.

• Ultrasonic welding: Use advanced ultrasonic welding equipment to weld the sheets into a three-dimensional mesh structure.

• Quality inspection: Strict quality inspection of finished products to ensure that the products meet national standards and customer requirements.

Shipping scenario:

• Logistics and transportation: Use professional logistics and transportation methods to ensure that products are delivered to customers safely and promptly.

• On-site guidance: Provide professional on-site guidance services to assist customers in product laying and construction.

Packaging and transportation

• Fold and pack to save transportation volume;

• Use strapping or plastic film to wrap to avoid transportation damage;

• Configure different roll diameters according to unit height and unfolded size.

FAQ

What are the specifications of geocells? Can they be customized?

• Common parameters include:

• Height: 50mm, 75mm, 100mm, 150mm, 200mm

• Unit size: 330mm, 356mm, 445mm, etc.

• Surface form: smooth, rough, perforated

• All parameters can be customized according to project requirements.

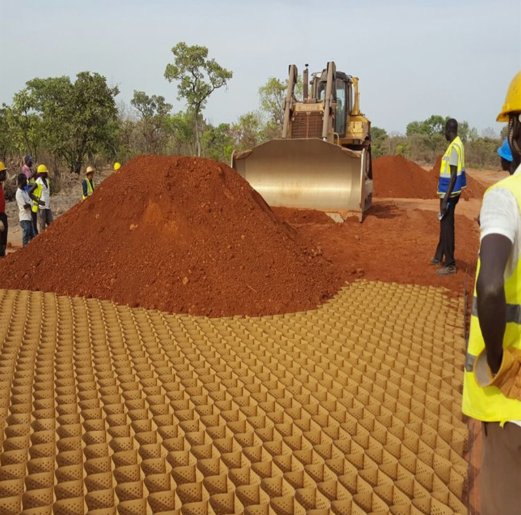

How to install geocells? Is it complicated?

• The construction process is simple, and the main steps are:

• Leveling and compacting the foundation

• Unfolding and fixing the geocell (anchors, nail rods)

• Filling with sand, gravel, mixture or concrete

• Compacting and covering

• If the construction area is large or the geology is complex, it is recommended to be operated by a professional team.

Can geocells be used in conjunction with other materials?

• Yes. It is often used in conjunction with geotextiles, geomembranes, drainage nets, concrete and other materials to form a more complex protection or reinforcement system.

 How does the geocell perform in extreme climates?

• Cells made of high molecular polymers have good environmental adaptability:

• UV resistance, acid and alkali corrosion resistance

• Working temperature range: -40℃ ~ +60℃

• Lifespan can reach more than 20 years (depending on the specific use environment)

How to transport and store cell products?

• Fold and roll for transportation, small size

• Store in a dry and ventilated place, avoid direct sunlight

• It is recommended to complete the construction within short-term use to maintain performance
