Composite Fiberglass Geogrid is a composite georeinforced material that combines high-strength fiberglass mesh with geotextile or asphalt reinforcement materials (such as geomembranes, nonwoven fabrics). It has excellent tensile strength, high temperature resistance, fatigue resistance and bonding properties, and is widely used in structural reinforcement and life extension treatment in infrastructure projects such as roads, airport runways, embankments and railways.
Fiberglass Geogrid | |||||||||
Property | Test Method | RH30/30 | RH50/50 | RH80/80 | RH100/100 | RH120/120 | RH150/150 | RH200/200 | |
Ulimate tensile strength(kn/m) | MD | EN ISO 10319 | 30 | 50 | 80 | 100 | 120 | 150 | 200 |
CD | 30 | 50 | 80 | 100 | 120 | 150 | 200 | ||
Elongation at max load (%) | MD | 3 | |||||||
CD | 3 | ||||||||
Non Woven Geotextile | |||||||||
Raw Material | PET or PP | ||||||||
Gram Weight | 120g,150g or 200g | ||||||||
Roll Size | |||||||||
Roll width(m) | 1-6 | ||||||||
Roll length(m) | 50-200 | ||||||||
Features:
Extremely high longitudinal and transverse tensile strength; up to ≥ 50~200kN/m, effectively suppressing road surface reflective cracks and structural deformation.
Excellent thermal stability; glass fiber itself is not easy to melt and can withstand high temperatures to above 260℃, suitable for asphalt paving conditions.
Good adhesion; after special coating treatment, it forms a good interface with asphalt or base material to improve overall stability.
Composite reinforcement function; backing material can provide additional anti-seepage, isolation or filtration and drainage functions to form an integrated structural system.
Corrosion-resistant and anti-aging; suitable for complex engineering conditions such as acid and alkali soil, water vapor environment, and its lifespan can reach more than 30 years.
Application Fields:
Asphalt road structure enhancement; inhibit the reflection cracks on asphalt pavement to extend the service life of the road
Repair and reinforcement of old pavement; renovation and laying of pavement to improve the overall bearing capacity of the structural layer
Highway/airport runway/bridge deck paving layer; withstand frequent heavy load impacts to avoid structural layer displacement and damage
Water conservancy dam body and embankment project; plays a role in soil reinforcement and anti-shrinkage
Railway subgrade bed reinforcement; prevent settlement and structural sinking, and improve operational safety
Customized Service:
Size customization: grids of different widths and mesh sizes can be provided according to requirements.
Material selection: glass fiber, polyester, plastic and other materials are available.
Reinforcement type: geotextile, non-woven fabric and other materials can be compounded to improve engineering adaptability.
Brand customization: OEM production is supported, and logo and packaging can be customized.
Special treatment: anti-UV, anti-aging, waterproof and other treatments can be performed to extend service life.
Production Scenario:
Automated production line: high-precision equipment production to ensure stable product performance.
Quality inspection: each batch of products undergoes rigorous testing of tensile strength, durability, etc.
Environmentally friendly manufacturing: environmentally friendly materials are used to meet international sustainable development standards.
Certificates:
ISO 9001 Quality Management System Certification
CE Certification EU Market Compliance Certification
SGS Test Report Quality and Performance Test Certification
ASTM Standards Comply with the standards of the American Society for Testing and Materials
Environmental Testing Report Comply with environmental requirements
FAQ:
Q1: What are the main materials of composite geogrids?
A1: Optional glass fiber, polyester fiber or plastic geogrids, and can be composited with non-woven fabrics, geotextiles and other materials.
Q2: How to choose a suitable composite geogrid?
A2: Select the appropriate tensile strength, composite material type (such as geotextiles, non-woven fabrics) and environmental adaptability according to engineering requirements.
Q3: What is the product life?
A3: Generally up to 50 years or more, the specific life is affected by the environment and material properties.
Q4: Can you provide samples?
A4: Free samples can be provided, and the shipping cost is borne by the customer.
Q5: What environments are composite geogrids suitable for?
A5: Suitable for a variety of extreme environments such as humidity, acidic and alkaline soils, cold or high temperatures.

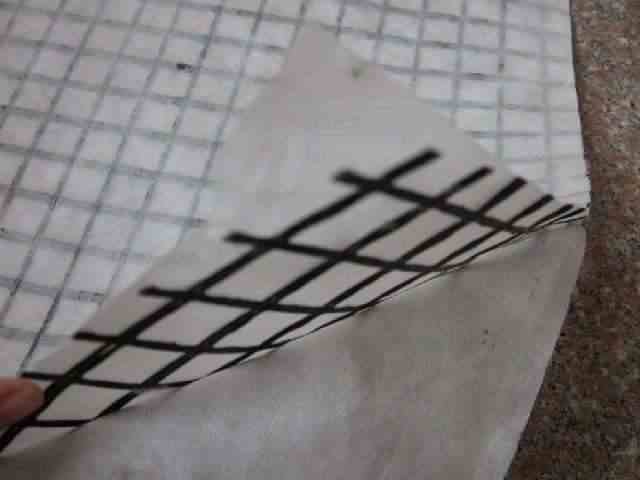

Composite fiberglass geogrid
Composite Fiberglass Geogrid is a composite georeinforced material that combines high-strength fiberglass mesh with geotextile or asphalt reinforcement materials (such as geomembranes, nonwoven fabrics). It has excellent tensile strength, high temperature resistance, fatigue resistance and bonding properties, and is widely used in structural reinforcement and life extension treatment in infrastructure projects such as roads, airport runways, embankments and railways.

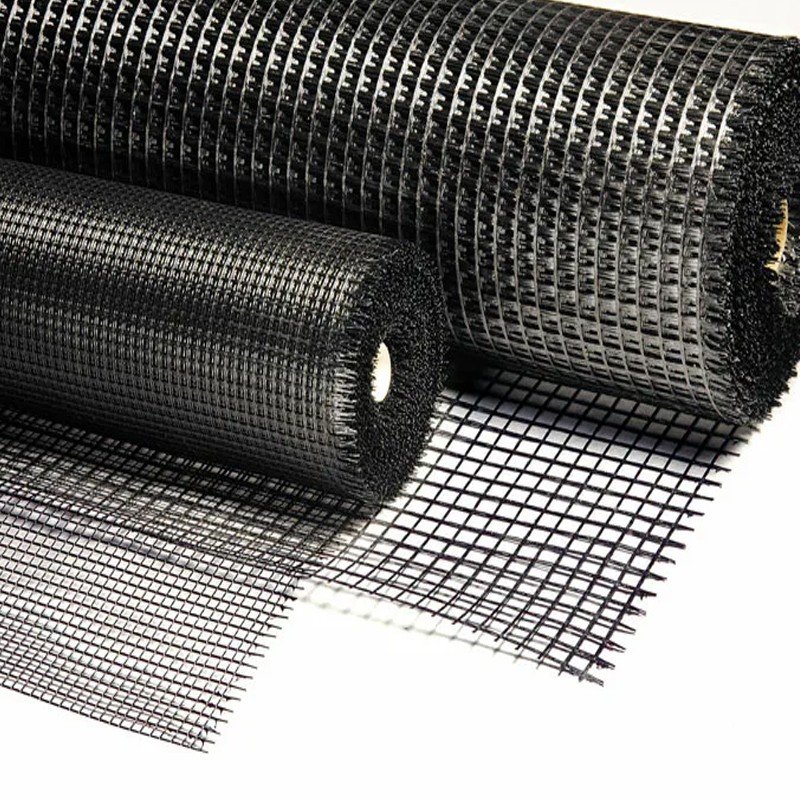

Composite Geogrid
Composite geogrid is a new type of high-strength geosynthetics, usually composed of glass fiber, polyester fiber or plastic geogrid and non-woven fabrics, geotextiles, etc. This product combines the high tensile strength of geogrid with the isolation, filtration, drainage and other functions of geotextiles, and is widely used in engineering fields such as soft foundation reinforcement, roadbed reinforcement, slope protection, etc.
