Easy-Maintainable HDPE Geomembrane Factory

Product Category

HDPE Geomembrane

Product Introduction

HDPE geomembrane (high-density polyethylene geomembrane) is a waterproof and anti-seepage material made by blowing or calendering process. It has excellent anti-seepage performance, chemical corrosion resistance, aging resistance and mechanical strength, and is widely used in anti-seepage projects such as landfills, reservoirs, artificial lakes, sewage treatment pools, and mine tailings ponds.

inquiry now

description

inquiry Now

Recommended products

description

Features:

High strength: High-strength HDPE material is used, with high tensile strength and can withstand large loads.
Corrosion resistance: HDPE material has good acid and alkali resistance and chemical corrosion resistance, and is suitable for various complex geological environments.
Anti-aging: After special treatment, it has good UV resistance and oxidation resistance, and has a long service life.
Light weight: Light specific gravity, easy to transport and lay, can effectively reduce construction costs.
Convenient construction: Foldable, easy to transport and lay, high construction efficiency.
Good water permeability: Mesh structure, good water permeability, can effectively remove moisture from the soil, and prevent water accumulation from damaging the project.
Ecological and environmental protection: Recyclable and pollution-free.

Properties	Test Method	GMSH050	GMSH075	GMSH100	GMSH150	GMSH300
■ Thickness	ASTM D5199	0.50 mm	0.75 mm	1.00 mm	1.50 mm	3.00 mm
■ Density	ASTM D1505	0.940 g/cc	0.940 g/cc	0.940 g/cc	0.940 g/cc	0.940 g/cc
Tensile Properties
■ Yield strength ■ Break strength ■ Yield elongation ■ Break elongation	ASTM D6693 Type IV	7 kN/m 13 kN/m 12% 700%	11 kN/m 20 kN/m 12% 700%	15 kN/m 27 kN/m 12% 700%	22 kN/m 40 kN/m 12% 700%	41 kN/m 82 kN/m 12% 700%
■ Tear Resistance	ASTM D1004	62 N	93 N	125 N	187 N	375 N
■ Puncture Resistance	ASTM D4833	160 N	240 N	320 N	480 N	960 N
■ Stress Crack Resistance	ASTM D5397	500 hrs	500 hrs	500 hrs	500 hrs	500 hrs
■ Carbon Black Content	ASTM D1603	2.0%	2.0%	2.0%	2.0%	2.0%
■ Carbon Black Dispersion	ASTM D5596	For 10 different views:9 in Categories 1 or 2 and 1 in Category 3
■ Oxidative Induction Time (OIT)	ASTM D3895	100 min.	100 min.	100 min.	100 min.	100 min.
■ UV Resistance High Pressure OIT retained after 1600hrs	ASTM D5885	50%	50%	50%	50%	50%
Dimensions
■ Roll Width (m)		7	7	7	7	7
■ Roll Length (m)		420	280	210	140	50

Application Fields:

Civil engineering: used for roadbed reinforcement, slope protection, and retaining wall reinforcement in highways, railways, airports, and other projects.
Water conservancy projects: used for slope protection, anti-scouring, and drainage in dams, reservoirs, channels, and other projects.

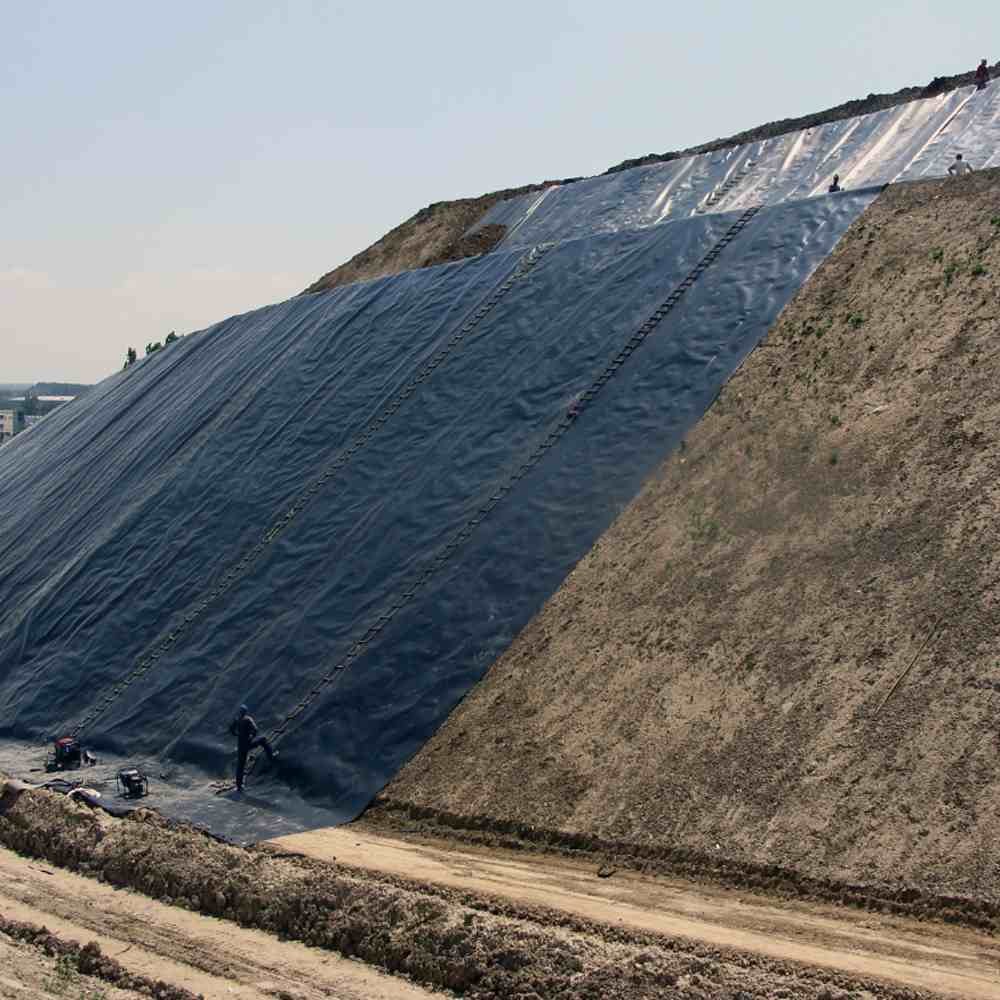

Environmental engineering: used for anti-seepage, drainage, and vegetation restoration in landfills, tailings ponds, and other projects.
Construction engineering: used for waterproofing and moisture-proofing in basements, roofs, and other projects.
Other fields: used in landscaping, agricultural horticulture, and other fields.

Customized service:

Specification customization: Thickness, color and other specifications can be customized according to customer needs.
Packaging customization: Different packaging methods can be customized according to customer needs, such as roll packaging, pallet packaging, etc.

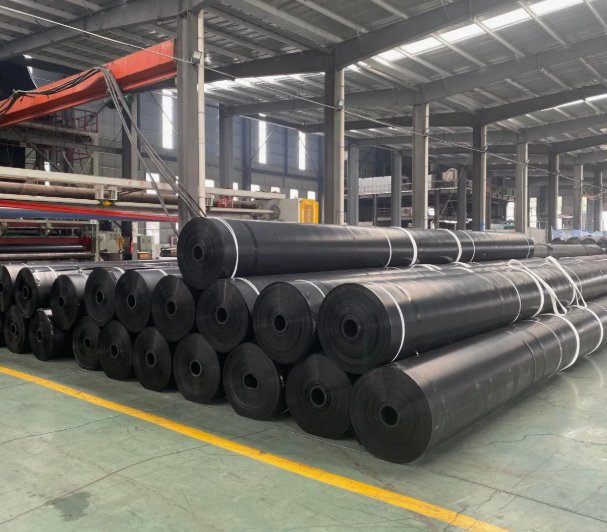

Production scenario:

Raw material preparation: Select high-quality HDPE raw materials and undergo strict quality inspection.
Sheet production: Process HDPE raw materials into sheets.
Ultrasonic welding: Use advanced ultrasonic welding equipment to weld the sheets into a three-dimensional mesh structure.
Quality inspection: Strict quality inspection of finished products to ensure that the products meet national standards and customer requirements.

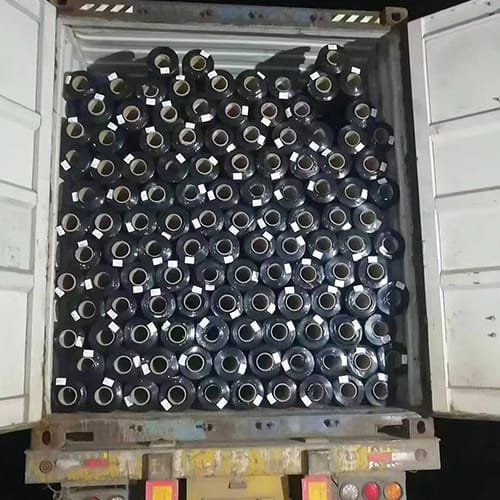

Shipping scenario:

Logistics and transportation: Use professional logistics and transportation methods to ensure that products are delivered to customers safely and promptly.
On-site guidance: Provide professional on-site guidance services to assist customers in product laying and construction.

Certificates:

Product quality certification: Passed ISO9001 quality management system certification, CE certification, etc.
Product test report: Provide product test reports issued by authoritative organizations.

FAQ:

How long is the service life of HDPE geomembrane?
When used under normal conditions, the service life of HDPE geomembrane can reach more than 50 years. If exposed to strong ultraviolet rays for a long time, the service life will be shortened, but the addition of antioxidants and UV stabilizers can significantly extend the service life.

Is HDPE geomembrane resistant to chemical corrosion?
Yes. HDPE geomembrane has excellent chemical stability and can resist corrosion from most acids, alkalis, salts, oils and organic solvents, and is particularly suitable for chemical and mining environments.
What is the difference between HDPE geomembrane and LLDPE geomembrane?
HDPE film is harder and has high tensile strength, which is suitable for long-term projects;
Is HDPE geomembrane environmentally friendly?
Yes. HDPE is a recyclable material, non-toxic and harmless, and is widely used in environmental protection projects such as landfills and sewage treatment plants, which can effectively prevent pollutants from leaking.
How high a temperature can HDPE geomembrane withstand?
The temperature resistance range of HDPE geomembrane is roughly -60℃ to +60℃. It can withstand higher temperatures for a short time, but long-term high temperatures may affect its performance.
