HDPE Geocell - Durable Ground Stabilization Solutions

1. High Strength & Load Capacity

• Weld strength: ≥100 N/cm (up to 142 N/cm) 、Tensile strength: ≥200 N/cm for cell groups 、Tensile yield strength: ≥20 MPa

•  Supports loads from pedestrian paths (<1,000 kg) to heavy construction traffic (<50,000 kg) and mining trucks (<80,000 kg)

2. Exceptional Durability

• UV stabilized for long-term outdoor exposure 、Environmental Stress Crack Resistance: >3,000 hours (up to 4,000+ hours) 、Oxidation induction time: ≥20 minutes (up to 150 minutes)

3.Operational Advantages

• Foldable & Compact – Collapses for efficient transport and storage

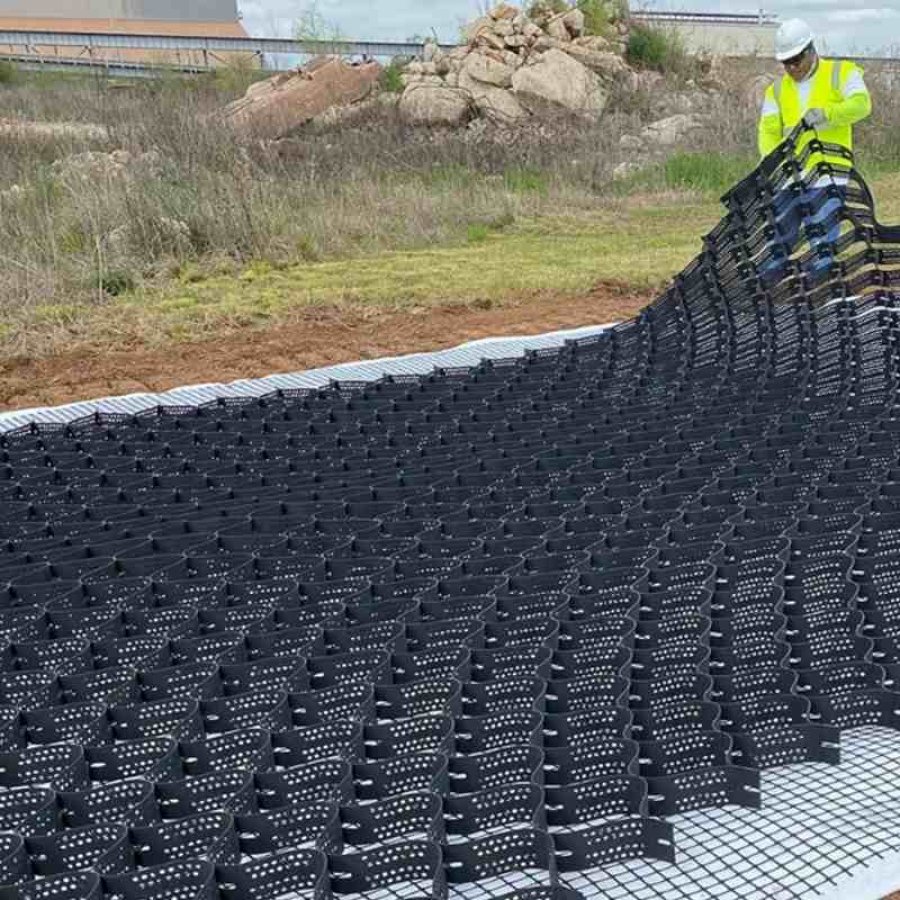

• Fast Installation – Expands on-site like a honeycomb; can use local infill materials

• Cost Savings – Reduces imported fill material by up to 50%, lowers structural thickness requirements

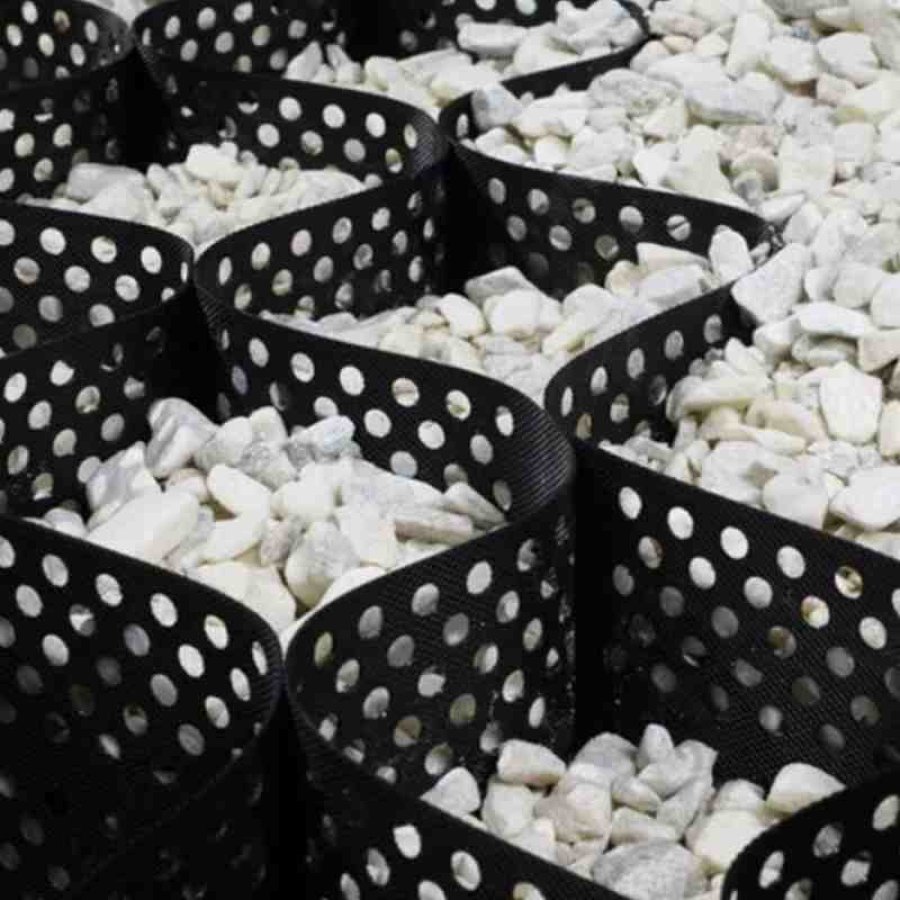

• Perforated Options – ≤10mm diameter holes, <12% wall surface area for drainage

• Color Options – Black (standard), green, brown, yellow, sand, tan available

1. Transportation Infrastructure

• Roads & Highways – Base and subbase reinforcement, reducing aggregate layer thickness, extending pavement service life

• Railways – Ballast confinement and stabilization for railway beds

• Ports & Airports – Load support platforms, heavy equipment access roads, temporary airstrips

2. Slope & Shoreline Protection

• Slope Stabilization – Steep slopes up to 70 degrees; vegetated and non-vegetated embankments

• Shoreline & Coastal Protection – Lake and ocean erosion protection, bank stabilization

• Channel Protection – Stormwater conveyance channels, spillway side slopes, high-velocity water flow areas

3. Erosion Control

• Highway banks and cut slopes

• Desert and beach stabilization

• Riverbed and riverbank regulation

• Stormwater basins and wastewater lagoons

4. Retaining Walls

• Gravity Retaining Walls – Stacked geocell structures using local aggregate infill; flexible design suitable for variable foundation soils

5. Load Support & Ground Stabilization

• Soft soil foundation reinforcement

• Pipeline and sewer support systems

• Heavy-duty hybrid retaining walls for landslide prevention

• Mine access roads and containment areas

1. Material & Surface Options

• Surface Type: Smooth or textured (dimpled) – textured provides better friction and infill retention

• Material Grade: Virgin HDPE (standard) or recycled HDPE (eco-friendly option)

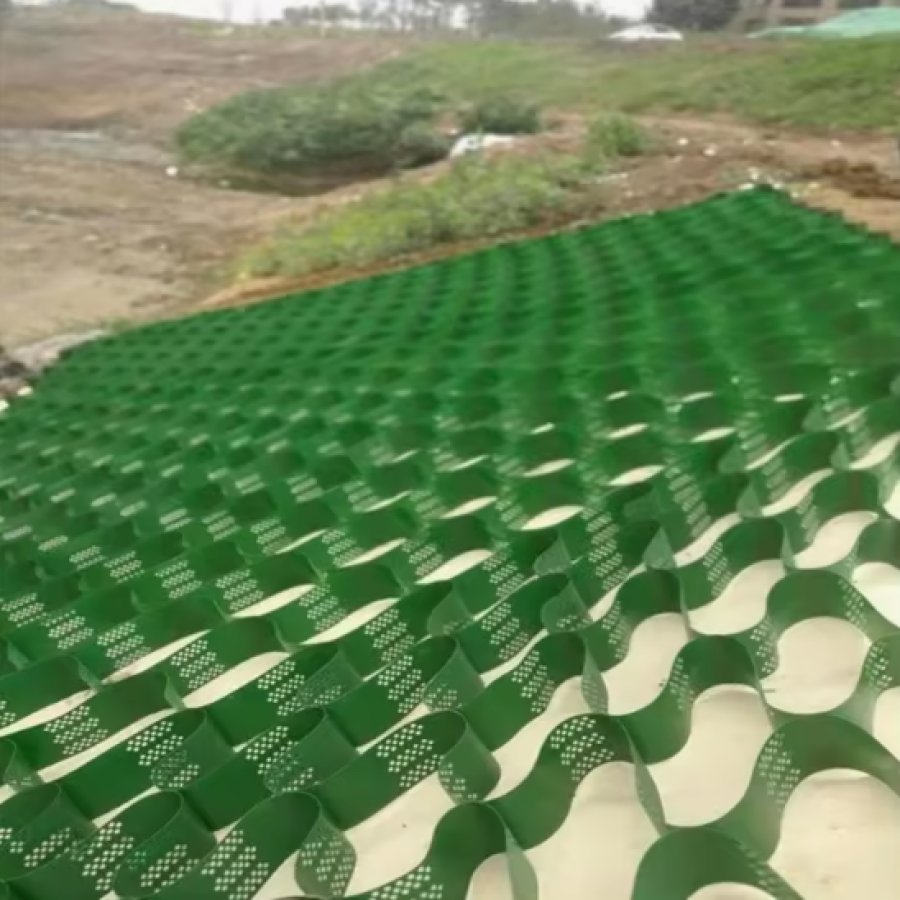

• Color Options: Black (standard), green (vegetation blending), brown, yellow, sand, tan, or custom colors

2. Perforation Customization

• Hole Diameter: ≤10mm (typically)

• Hole Pattern: Custom spacing and arrangement

• Open Area: ≤12% of wall surface area for drainage purposes

3. Performance Enhancements

• UV Stabilization: Enhanced UV additives for extended outdoor exposure

• Carbon Black Content: Adjustable from 1.5% – 2.5% for different UV/aging requirements

• Oxidation Resistance: Custom additive packages for harsh chemical environments

• Low-Temperature Formulations: For permafrost or cold climate applications

4. Panel & Packaging Customization

• Foldability Design: Custom folding patterns for compact shipping

• Bundle Size: Tailored roll weight and dimensions per shipping container

• Labeling: Custom tags with project name, batch number, and installation instructions

5. Connection & Accessory Integration

• Connector Clips: Custom designed clips for adjacent panel joining

• Anchoring Systems: Pre-engineered anchor slots or reinforced edge strips

• Geotextile Lamination: Pre-attached geotextile to the bottom for filtration (vegetated slopes)

• Raw material preparation: Select high-quality HDPE raw materials and undergo strict quality inspection.

• Sheet production: Process HDPE raw materials into sheets.

• Ultrasonic welding: Use advanced ultrasonic welding equipment to weld the sheets into a three-dimensional mesh structure.

• Quality inspection: Strict quality inspection of finished products to ensure that the products meet national standards and customer requirements.

• Logistics and transportation: Use professional logistics and transportation methods to ensure that products are delivered to customers safely and promptly.

• On-site guidance: Provide professional on-site guidance services to assist customers in product laying and construction.

• Fold and pack to save transportation volume;

• Use strapping or plastic film to wrap to avoid transportation damage;

• Configure different roll diameters according to unit height and unfolded size.

Q1: What is the typical service life of HDPE Geocells?

A: High-quality HDPE Geocells manufactured from 100% virgin HDPE with proper UV stabilization (carbon black content 1.5–2.0%) can provide a service life of 70 to 100+ years under normal environmental conditions . Environmental Stress Crack Resistance (ESCR) is a key indicator—premium products achieve 5,000 to 7,000+ hours per ASTM D1693 testing .

Q2: What is the difference between geocells and geogrids?

A: Geogrids are 2-dimensional planar structures that provide tensile reinforcement. Geocells are 3-dimensional honeycomb structures that provide lateral confinement, load distribution, and vertical stiffening. For weak subgrades or heavy loads, geocells generally outperform geogrids because they physically contain infill material and prevent lateral migration .

Q3: What are the different material grades available?

A: Two main grades are common:

Standard Grade (e.g., BaseCore): 1.7mm material thickness, suitable for residential and light-duty applications (passenger vehicles, walkways, light landscaping)

Heavy Duty Grade (e.g., BaseCore HD): 2.0–2.4mm material thickness, double-welded seams, suitable for commercial, industrial, and military applications (semi-trucks, mining equipment, fire trucks)
